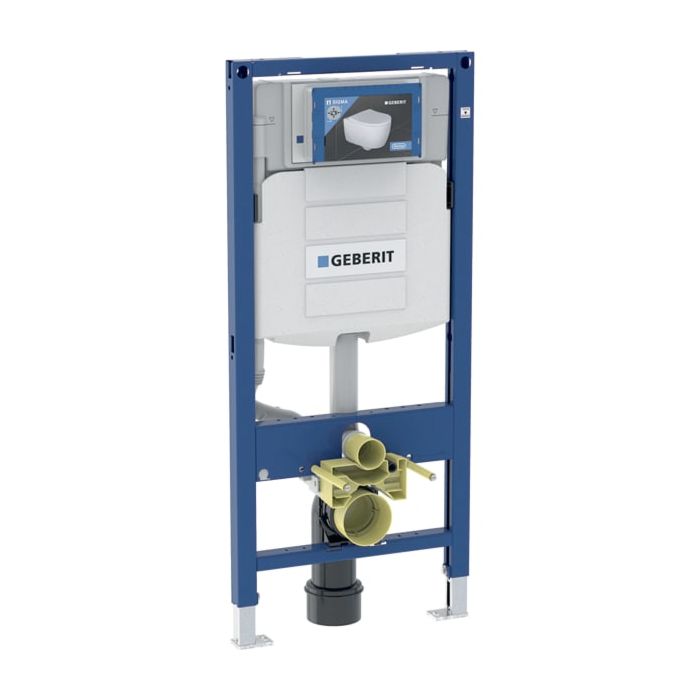

Geberit Duofix Compact WC element 111900005 BH 112 cm, with Electrical and communication connection box
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 400
Part Number: 111900005
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Geberit Duofix wall-hung WC element 111900005
- for drywall
- with concealed cistern 12 cm
- for installation in partial or room-high pre-wall installations
- in room-high installation walls
- in partial or room-high Duofix system walls
- for wall-hung toilets with connection dimensions according to DIN EN 33:2011-11
- with projection up to 62 cm
- for 1-quantity
- Dual flush or flush-stop flush
- for floor structures 0-20 cm
- for concealed power connection behind the toilet ceramic
- self-supporting frame powder-coated
- Frame with drill holes Ø 9 mm for fastening in timber frame construction
- Frame prepared for supports for WC ceramics with small contact surface
- Footrests galvanized
- adjustable 0-20 cm
- with anti-slip properties
- Rotatable footplates
- Depth suitable for installation in U-profiles UW 50 and UW 75 and Duofix system rails
- Connection bend can be mounted in various depth positions without tools
- Adjustment range 45 mm
- Fastening connection bend soundproof
- Concealed cisterns with front actuation
- condensate-insulated
- Immediate rinsing possible with factory settings
- Installation and maintenance work on the concealed cistern without tools
- Water connection at the rear or top center
- Construction protection for service opening protects against moisture
- dirt and can be cut to length
- prepared for mounting a 12 V power supply behind the toilet ceramic
- Equipped with empty pipe for water supply for connecting AquaClean shower toilets
- with water connection R 1/2"
- MF-capable
- with integrated angle valve and handwheel
- Construction protection for service opening
- 2 protective plugs
- Connection set for toilet
- Ø 90 mm
- 90° connecting bend made of PE-HD
- Ø 90 mm
- PE-HD transition sleeve
- Ø 90/110 mm
- 2 threaded rods M12
- Electrical and communication junction box
- Empty pipe length 0
- 32 m
- for connection Geberit AquaClean
- Construction protection for electrical and communication junction boxes and fastening materials
