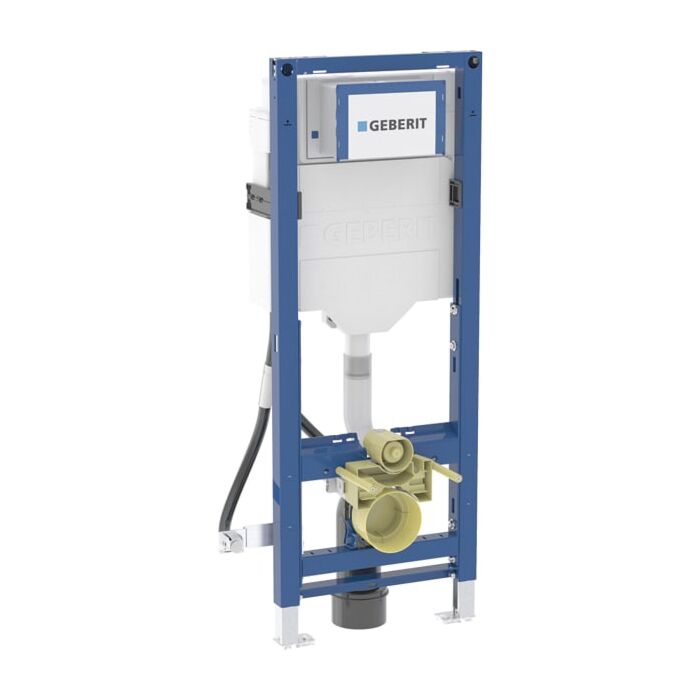

Geberit Duofix WC frame for wall-hung WC /disabled WC
Ideal for tight niches, small guest bathrooms, or narrow pre-wall installations. Features the modern Sigma UP320 cistern (2025 series). Suitable for disabled WCs, though it does not include mounting plates for lateral grab rails.
- Item number: 111350006
- Width: 42.5 cm
- Suitable for drywall construction (pre-wall and system walls)
- For accessible installations in metal or timber stud walls
- Flexible application for floor structures ranging from 0–25 cm
- Suitable for WCs with a projection of up to 70 cm
- Includes conduit for water supply (for Geberit AquaClean shower toilets) or connection cables
- Prepared for mounting a 12 V power supply unit behind the WC ceramic (please order Geberit power supply unit separately)
Cistern: Geberit Sigma 12 cm; easy front actuation; supports single or dual flush.
Quality: Corrosion-resistant, powder-coated steel frame designed for self-supporting structural loads.
Flexibility: WC mounting height adjustable between 41–46 cm during the rough-in phase.
Smart Home Ready: Includes Power & Connect Box and integrated conduit for quick connection of shower toilets.
Easy installation: Tool-free adjustment of the connection bend and straightforward maintenance of the concealed cistern.
Scope of delivery:
- WC pre-wall element with Sigma concealed cistern
- Water supply connection R 1/2", MasterFix and MeplaFix compatible, with
- integrated angle stop valve and handwheel
- Protection box for service opening
- 4 wall anchors
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adapter sleeve made of PE-HD, ø 90 / 110 mm
- Power & Connect Box, with intermediate shelf featuring
- connection terminal
- Conduit, length 0.32 m, for Geberit AquaClean connection
- Protection box for Power & Connect Box
- Fastening and protective material
