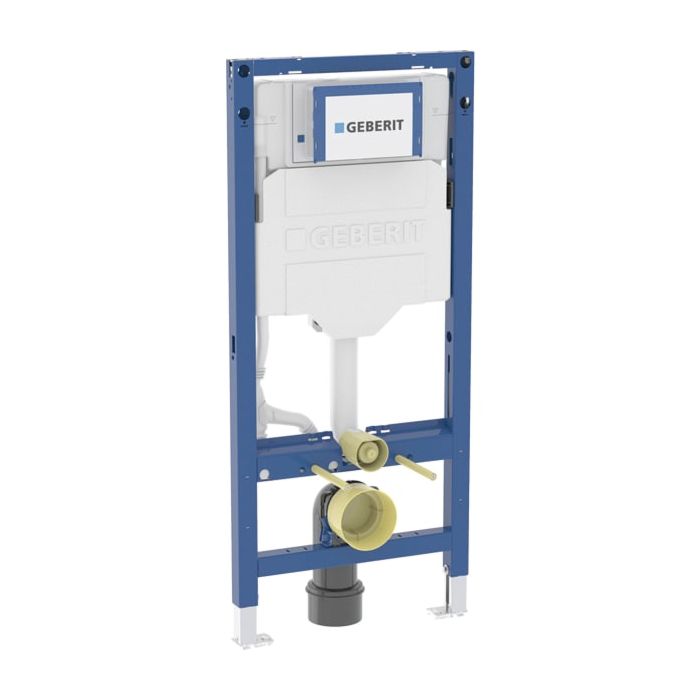

Geberit Duofix wall-hung toilet frame, height-adjustable
The classic Geberit Duofix WC frame for the quick and secure installation of wall-hung WCs in drywall construction. Thanks to the proven Sigma concealed cistern (UP320), the installation element offers maximum reliability and excellent sound insulation, and is pre-equipped for the retrofitting of modern shower toilets.
- Article number: 111300006
- Width: 50 cm
- For Geberit Duofix system walls
- For installation in metal and timber stud walls
- For installation in partial- or room-height pre-walls
- For installation in room-height partition walls
- Suitable for floor constructions of 0–25 cm
- With Geberit Sigma concealed cistern, 12 cm, fully insulated against condensation
- Front actuation; suitable for single, dual, and stop-and-go flush
- Factory flush volume setting: 6 and 3 l
- Large flush volume adjustment range: 4 / 4.5 / 6 / 7.5 l
- Small flush volume adjustment range: 2–4 l
- Material: Steel
- Flow pressure: 10–1000 kPa
- Water temperature: Max. 25 °C
- Mounting provision for electrical connection and Power & Connect Box included
Why choose this WC frame?
Stable & Durable: Statically self-supporting steel frame with powder-coated corrosion protection. Standards-compliant: Frame for wall-hung WCs with connection dimensions according to EN 33 and a projection of up to 70 cm.
Simple mounting: Includes an extension plate for lateral mounting above the element onto metal/wood profiles or Geberit Duofix system uprights.
Flexible: Alternative mounting position available for wall anchors.
Easy installation: Rotatable foot plates, suitable for installation in UW 50 and UW 75 U-profiles.
Tool-free rail mounting: Foot plates can be mounted into the Geberit Duofix system rail without tools (no additional components required).
Secure footing: Galvanized, corrosion-protected leg supports with practical anti-slip feature.
Variable connection: Connection bend can be mounted at various depths without tools (adjustment range: 45 mm).
Ready for immediate use: Factory settings allow for immediate flushing.
Easy maintenance: All installation and maintenance work on the concealed cistern is performed entirely without tools.
Water connection: Flexible connection possible at the rear or top center.
Suitable for Geberit shower toilets: Equipped with a conduit for the water supply line for Geberit AquaClean shower toilets and for the connection cable.
Scope of delivery:
- Toilet frame with Sigma cistern
- Water connection R 1/2", MasterFix and MeplaFix compatible, with integrated angle stop valve and handwheel
- Protection plug for service opening
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adapter sleeve made of PE-HD, ø 90 / 110 mm
- Fastening and protective material
