Zehnder yucca mirror designer radiator ZY7012586700000 YM-180-60, 1766 x 600 mm, edelweiss
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

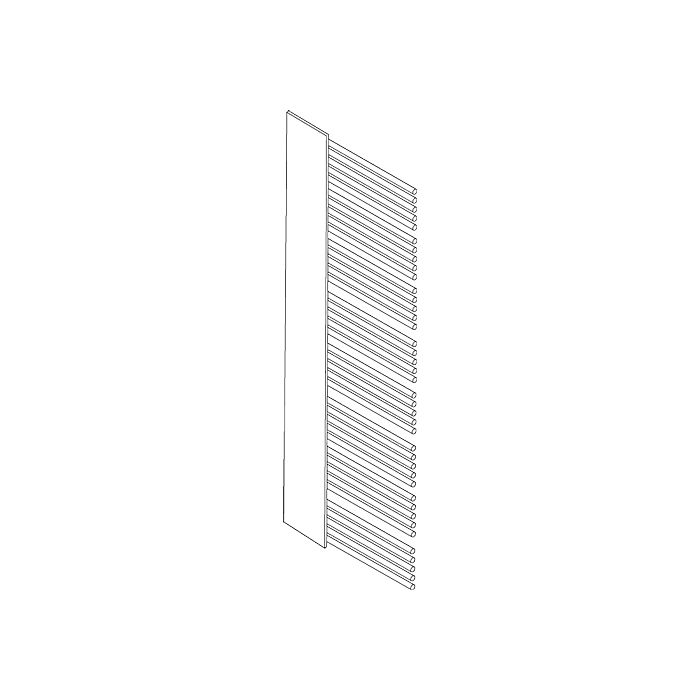

Zehnder yucca mirror design radiator ZY7012586700000
- Hot water operation
- made of horizontally arranged precision steel tubes and vertical header tubes
- completely welded
- Thermal output according to EN 442
- with CE mark
- 8 pipe packages, each consisting of 5 horizontal pipes, branch off to the left or right of the header pipes
- the asymmetrically located collecting pipes are covered by a mirror
- horizontal pipes 20 mm
- vertical collecting pipes Ø 30 mm
- Horizontal tubes Ø 20 mm
- for connection to hot water central heating
- with 2x 1/2" from below at a distance of 50 mm
- 2x 1/2" at the top for ventilation
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready to install with wall brackets in the same color as the radiator
- Operating pressure max. 12 bar
- Operating temperature max. 110 °C
- Installation possible as a right or left version
- 4x 1/2" connections for flow
- Rewind
- Venting
- 2x 1/2" vent valve
- Mounting accessories in the color of the radiator
- Mirror
