- painted
- made of horizontally arranged precision steel tubes and vertical header tubes
- without visible weld seams
- fully welded using cross hole welding process
- Pipe packages each consisting of 3 horizontal pipes branching off asymmetrically from the laterally arranged collectors
- Towels can be pushed in sideways
- for heating or drying
- Single or double layer design
- Heat output according to DIN EN 442
- 4x 1/2" connection at the ends of the collecting pipes for pre-
- Rewind
- Electric heating cartridge and ventilation
- Radiator can be rotated overhead
- Connection dimension 50 mm for use of a special connection fitting in one or two-pipe operation
- Radiator with powder coating
- Color RAL 9016
- Delivered ready for assembly in transport-safe protective cardboard packaging
- with wall brackets in the color of the radiator
- Operating pressure max. 12 bar
- Operating temperature max. 110 °C
- low overall depth
- easy cleaning (lambskin cleaning brush)
- Use as a room divider
- transparent optics
- Connection possible from above
- Mixed operation possible with connection fitting
- Installation possible on the right or left

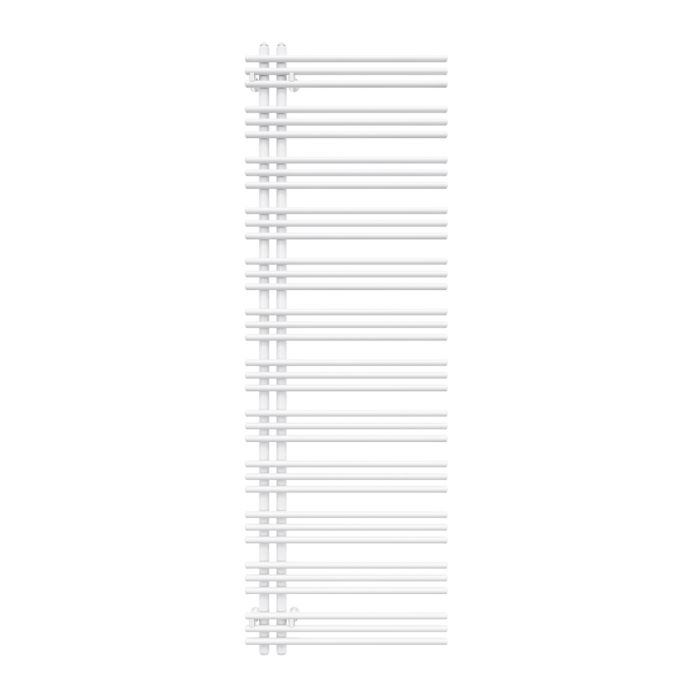

Zehnder Yucca Asym design radiator ZY300658G700000 YA-170-060, 1736 x 578 mm, Telegrey 4, RAL 7047, single layer
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Zehnder Yucca Asym designer radiator ZY300658G700000
