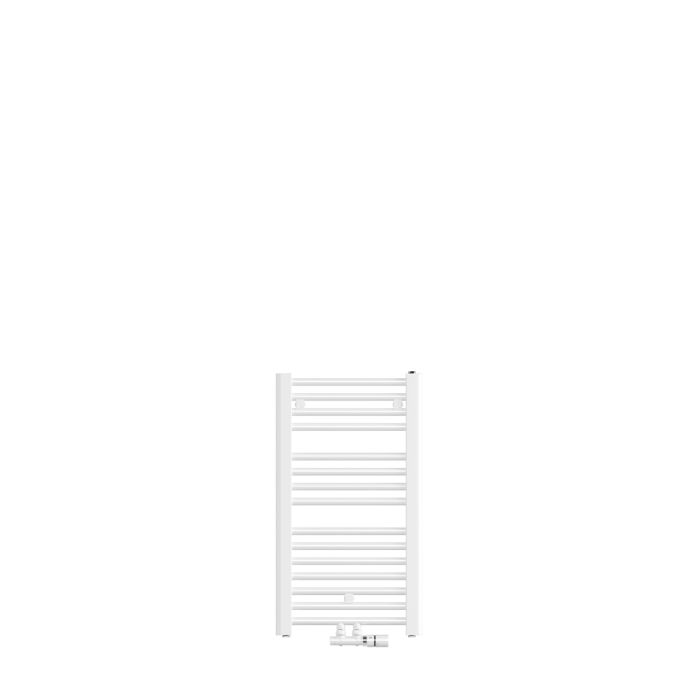

Zehnder Dero design radiator ZDD00145B100000 height 804 mm, length 450 mm, hot water operation

Zehnder Dero design radiator ZDD00145B100000

• made of straight horizontally arranged round tubes and vertically running collecting tubes
• Pipe connection soldered without visible connecting seams
• Round tubes with diameter 23 mm
• Collecting pipes with D-profile 50 x 35 mm
• Thermal performance tested according to EN 442
• with 4x 1/2" connections below
• 50 mm connection in the middle and at the ends of the manifolds for flow
• Return and optional heating element
• with vent valve
• Operating pressure max. 10
• 0bars
• Operating temperature max. 110 °C
• Vent valve 1/2"
• 2x blind plugs 1/2"
