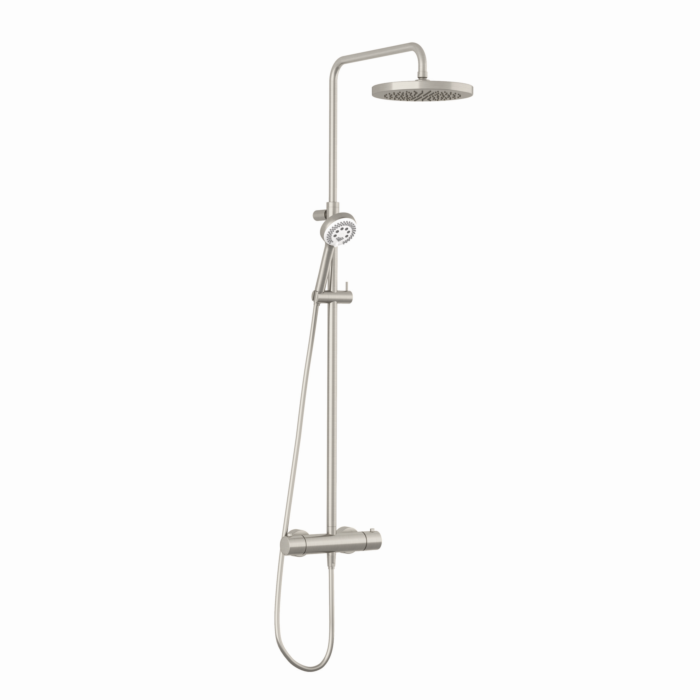

Kludi thermostat dual shower system 68082N5-00

  • DN 15
  • wall mounting
  • with horizontal and vertical
  • adjustable tube
  • Slider adjustable horizontally and vertically
  • Temperature control handle with hot water lock 40 °C
  • with optional temperature stop at 43°C
  • with ceramic shut-off valve as a 90°/90° rotary valve
  • Shower outlet at bottom G 1/2
  • Hand shower rotary valve to the rear
  • Shower outlet at the top
  • Shower head rotary valve forward
  • Dirt-trapping screens
  • Intrinsically safe against backflow
  • with SUPARAFLEX shower hose G 1/2 x G 1/2 x 1600 mm
  • with A-QA overhead shower
  • Ø 245 mm
  • Flow rate 16 l/min at 3 bar
  • 3S hand shower DN 15
  • Switchable to three beam patterns Booster
  • Smooth
  • volume
  • Flow rate 13
  • 5 l/min (booster) / 10 l/min (smooth) / 15 l/min (volume) at 3 bar
  • with emptying function
  • with mounting hardware
