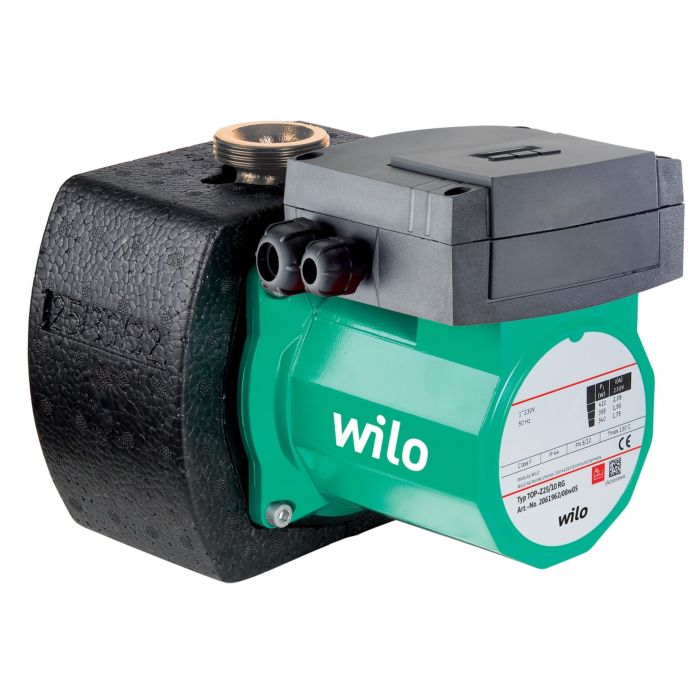

Wilo standard drinking water pump TOP-Z 2048340 30/7 RG, PN 10, 1 x 230 V

Wilo wet-running standard pump TOP-Z 30/7 1ph RG PN 10 Rp11/4 0.09kW drinking water circulation pump Wilo-TOP-Z variable-speed wet-running circulation pump for pipe installation. Thermal insulation shells as standard. 3 speed levels adjustable. For mains connection 1-ph 230 V, 50 Hz (up to P2 = 180 W) or 3-ph 400 V, 50 Hz. Pumps with 1-ph motor Blocking current proof up to P2 = 90 W or P2 = 180 W with full motor protection by winding protection contacts (WSK) in connection with Wilo tripping device SK 602/SK 622. Pumps with 3-phase motor up to P2 = 90 W: blocking current-proof, electronic direction of rotation control light combined with operation indicator light. Pumps with 3-ph motor from P2 = 180 W with integrated full motor protection including trigger electronics. Electronic direction of rotation control light combined with operation indicator light. Housing made of gray cast iron or gunmetal (TOP-Z-30/7 as standard), impeller made of glass-fibre reinforced plastic, chrome steel shaft with carbon plain bearings. Mechanical seal between pump and motor. Delivery medium: water Delivery rate: 0.00 m3/h Delivery head: 0.00 m Operating temperature: 20 oC Perm. Operating temperature - drinking water up to 20 odH: max. +80 o C, short. (2h) 110 oC - heating water: - 10 to + 110 oC (with Protect module: Tmin= -20 oC) Operating/nominal pressure: /PN10 Current type: /50Hz Power requirement P1 (max.): kW Speed (max.) : 1/min Degree of protection: IP Pipe connection: DN Make: Wilo Type: Wilo-TOP-Z
