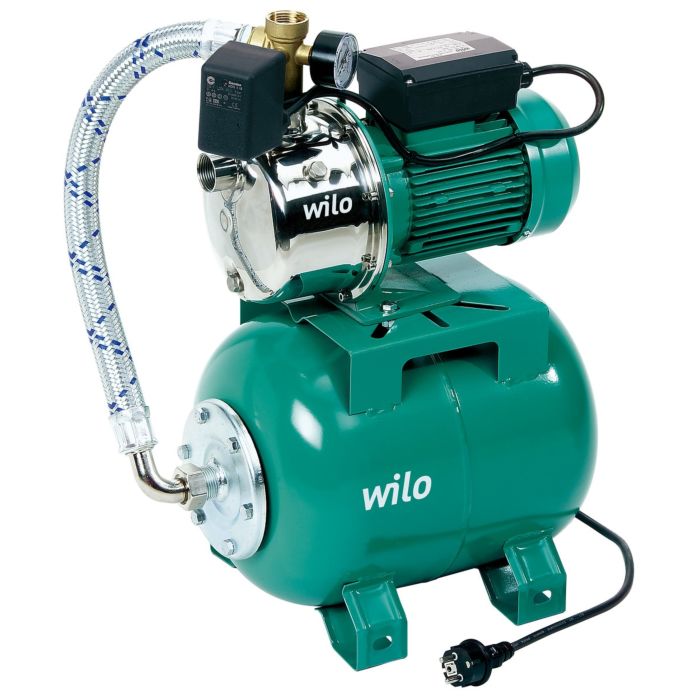

Wilo Multistage Wilo high pressure centrifugal pump 4265551
Jet HWJ 20 L 203,G 1/Rp 1,0.75kW, IE2
horizontal suction and vertical discharge nozzles
Self-priming
single-stage
pre-assembled ready for connection
wired with 2 m cable and power plug
continuous motor-pump shaft and rotation-independent mechanical seal
flanged AC or three-phase motor with integrated thermal motor protection switch and capacitor for AC version
Pump control by control kit with diaphragm pressure vessel, pressure switch and pressure gauge (0 – 6 bar)
Pressure vessel has a robust replaceable EPDM membrane
corrosion-free
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
