Details

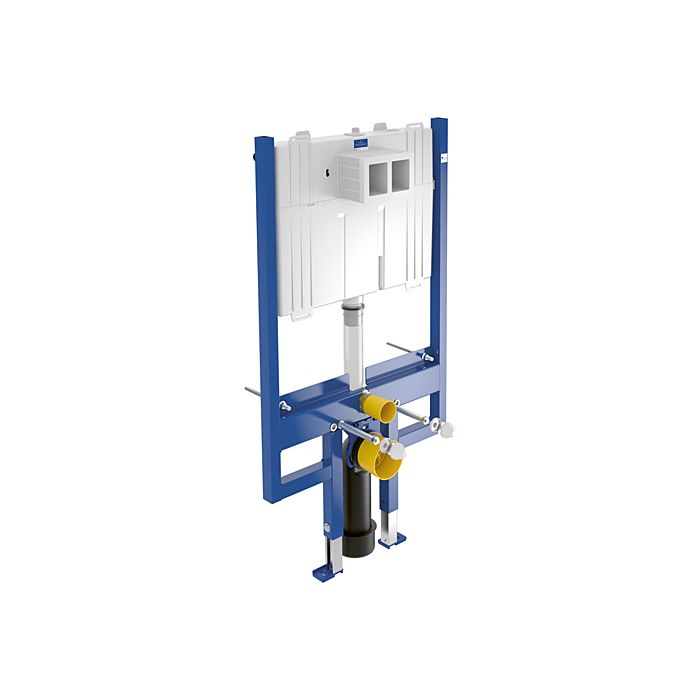

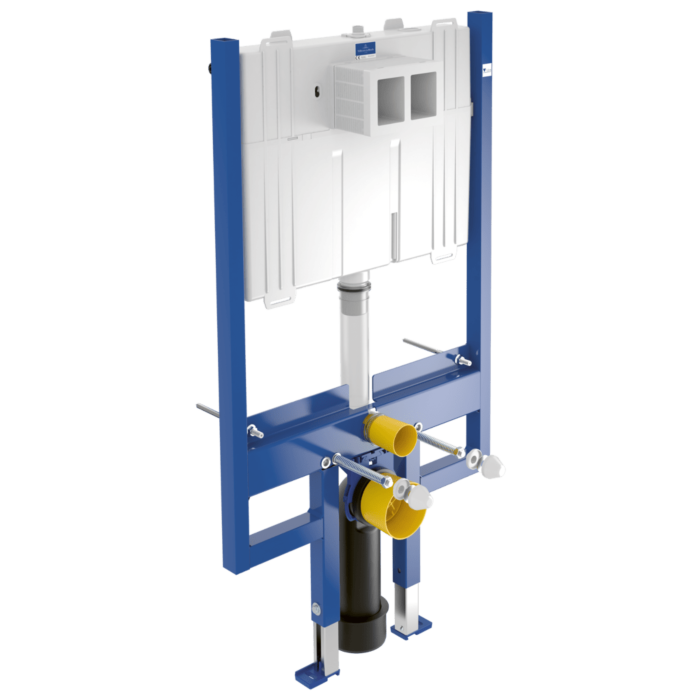

Villeroy & Boch ViConnect WC element

  • Item number: 92247600
  • Dimensions: 66.5 x 118.5 x 9.5 cm
  • for drywall, compact, depth min. 95mm
  • for dry cladding, installation in front of solid wall, in lightweight stand wall and much more, adjustment range feet from raw floor to OKFFB: 1930 -200mm, depth front edge element: min. 95mm
  • 6 attachment points
  • with wall bracket, incl. feet and fastening material, 2 WC M12 WC bolts adjustable 180mm with building protection and nuts, assembly instructions, fastening material, without WC plate
  • EN 14055
  • Single cardboard packaging
  • Compact WC combined with: for Compact WC
  • self-supporting, powder-coated steel frame construction, completely pre-assembled
  • Actuation from the front, transfer of the button function via flexible cable technology to the pop-up waste; Connection to the actuator plate via a turn-click connection
  • condensate cistern with condensed water and dual flush 3 / 6L, convertible to 3 / 4.5L, max. Flush volume 7.5L, filling valve for concealed plaster I, flexible hose to the filling valve, hand screwable, corner valve connection set R1 / 2, protective box for inspection opening can be shortened, WC connection WC 90 ° DN90 (Ø90) / with transition socket DN90 (Ø90) / DN110 (Ø110) with building protection , WC connection set DN90 (Ø90) / 180mm complete, test mark for concealed cistern: tap concealed I

Technical Data

Technical Data
Material Stahl
width 665 mm
depth 90 mm
height 1185 mm
product class WC module
model 922476
series ViConnect
surface protection coated
Min. Amount of flushing water 3 l
application drywall
adjustable height Yes
Max. Amount of flushing water 7.5 l
flush Two sets
Adjustable amount of rinse water Yes
Self-supporting construction Yes
depth adjustable Yes
