Adjustment range feet from raw floor to OKFFB: 1930 -200mm, depth adjustment front edge element: 155-205mm (when using wall brackets)
4 attachment points
with wall bracket, including feet and fastening material, with building protection for flushing pipe, 2 WC retaining bolts M12 adjustable 180 / 230mm with building protection and nuts, assembly instructions, without flush plate
EN 14055
Single cardboard packaging
Compact WC combined with: for Compact WC

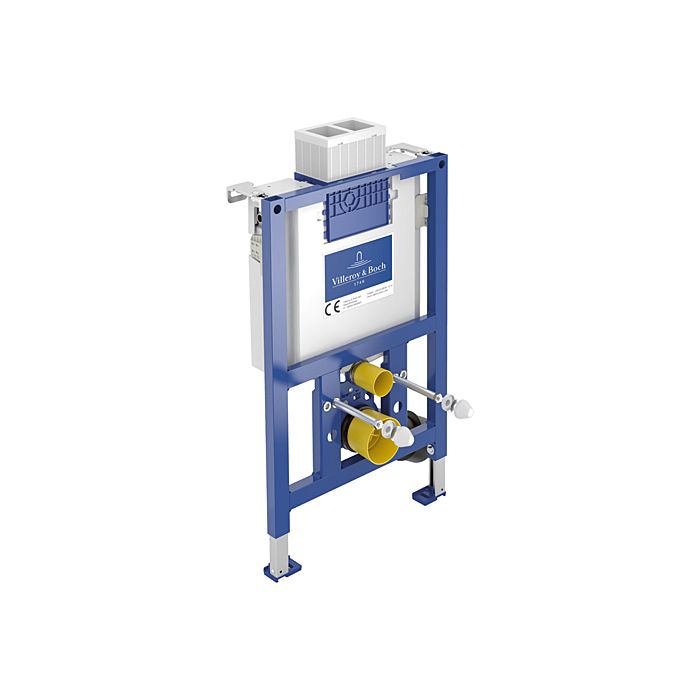

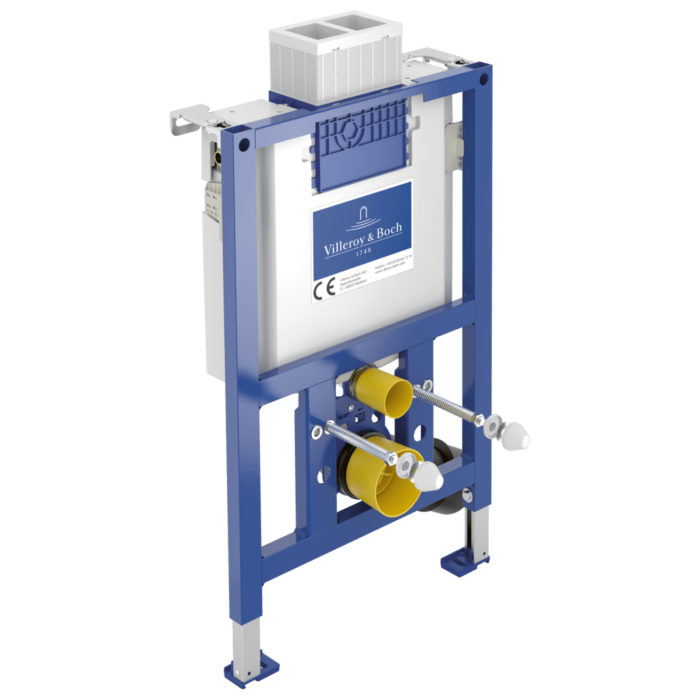

self-supporting, powder-coated steel frame construction, completely pre-assembled, actuation from the front / top
Actuation from the front / top, transmission of the button function via flexible cable technology to the pop-up waste; Connection to the actuator plate via a turn-click connection
condensate cistern with condensed water and dual flush 3 / 6L, convertible to 3 / 4.5L, max. Flush volume 4 / 9L, filling valve for concealed plaster I, flexible hose to the filling valve, hand-screwable, 2-piece corner valve connection set R1 / 2, 4-way adjustable mounting bracket, WC for inspection opening can be shortened, WC connection WC 90 ° DN90 (Ø90) / with transition socket DN90 ( Ø90) / DN110 (Ø110) with building protection, WC connection set DN90 (Ø90) / 180mm complete, test mark for concealed cistern: fitting concealed plaster I
