Details

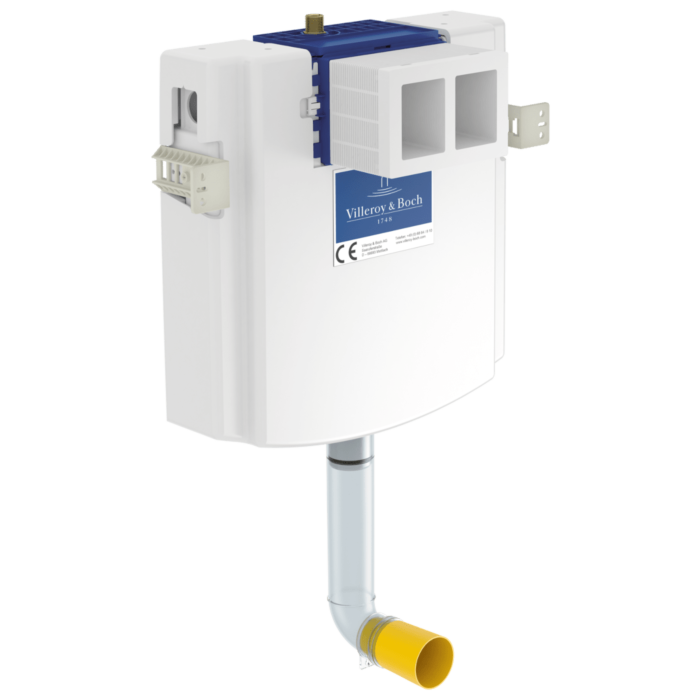

Villeroy & Boch ViConnect cistern

  • Item number: 92248300
  • Dimensions: 52.8 x 73.5 x 12.4 cm
  • Construction depth 125mm
  • with brackets, flush pipe connector, without fastening material, without flush plate
  • EN 14055
  • Single cardboard packaging
  • Compact WC combined with: for Compact WC , for WC floor-standing, close to the wall
  • Actuation from the front, transfer of the button function via flexible cable technology to the pop-up waste; Connection to the actuator plate via a turn-click connection
  • condensate cistern with condensed water and dual flush 3 / 6L, convertible to 3 / 4.5L, max. Flush volume 7.5L, filling valve for concealed plaster I, 2-part corner valve connection set R1 / 2, protective box for inspection opening, flushing elbow with building protection, test mark for concealed cistern: flush-mounted valve I

Technical Data

Technical Data
Material Kunststoff
color/ surface White
length 73,5
width 528 mm
depth 124 mm
height 735 mm
product class WC module
model 922483
series ViConnect
application wet construction
