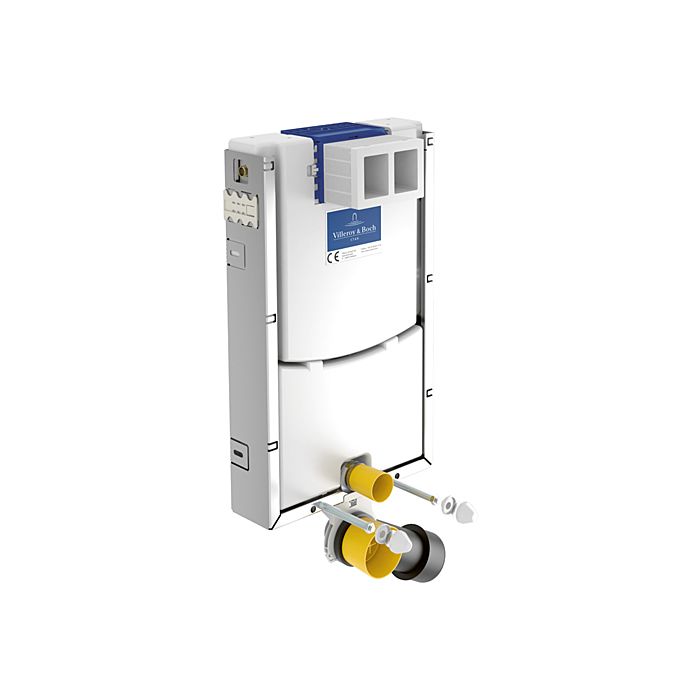

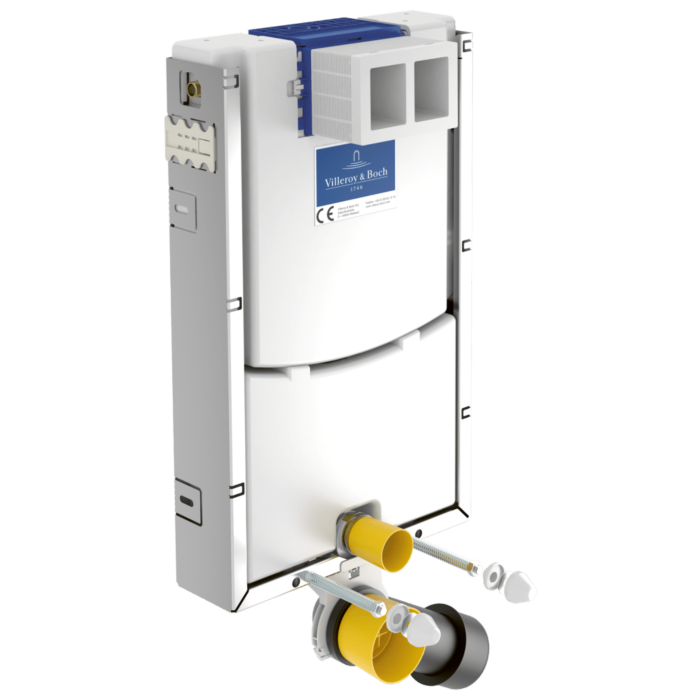

Villeroy & Boch ViConnect assembly element 92247900

  • Item number: 92247900
  • Dimensions: 45.3 x 78, 2000 x 12.5 cm
  • for wet construction, depth 125mm
  • for walling in or facing in front of a solid wall
  • WC material M12, fastening material, without WC plate
  • EN 14055
  • Single cardboard packaging
  • Compact WC combined with: for Compact WC
  • consisting of a galvanized U-shaped element with 6 fastening points
  • Actuation from the front, transfer of the button function via flexible cable technology to the pop-up waste; Connection to the actuator plate via a turn-click connection
  • condensate cistern with condensed water and dual flush 3 / 6L, convertible to 3 / 4.5L, max. Flush volume 7.5L, filling valve for concealed plaster I, flexible hose to the filling valve, hand-screwable, 2-piece corner valve connection set R1 / 2, mounting clamp for drain elbow 4-way adjustable, protection box for inspection opening can be shortened, WC connection WC 90 ° DN90 (Ø90) / with transition sleeve DN90 (Ø90) / DN110 (Ø110) with building protection, WC connection set DN90 (Ø90) / 180mm complete, test mark for concealed cistern: tap concealed I

Technical Data

Technical Data
length 78,1
width 453 mm
depth 125 mm
height 781 mm
product class WC module
model 922479
series ViConnect
Min. Amount of flushing water 3 l
application wet construction
Max. Amount of flushing water 7.5 l
flush Two sets
Adjustable amount of rinse water Yes
