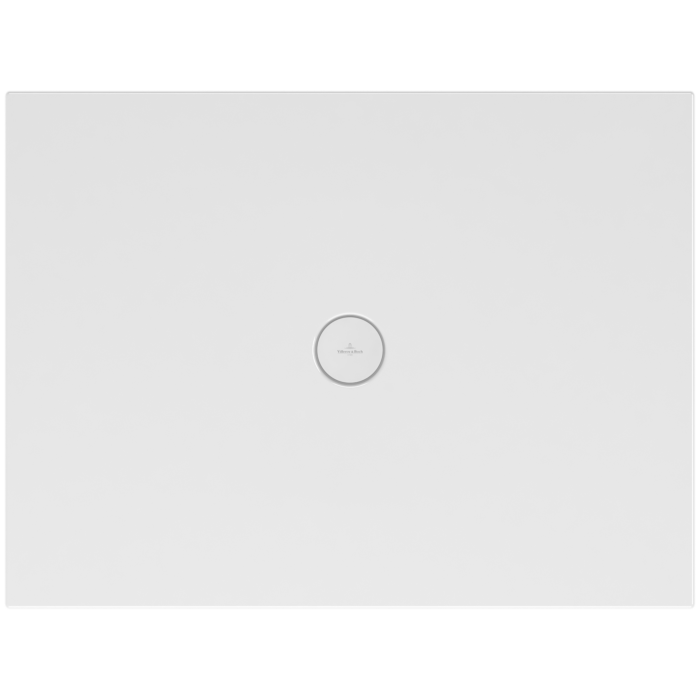

Villeroy & Boch Subway Infinity shower Subway Infinity

  • Item number: 6232V301
  • Color: white with anti-slip
  • Dimensions: 140 x 80 x 4 cm
  • Bathroom ceramics
  • not available in CeramicPlus
  • These shower trays are on 4 Sides can be cut (not glazed) and can only be used for a flush Plumbing
  • Surcharge for cutting already included in the total price!
  • Please note : the drain position is asymmetrically not central!
  • Bathroom ceramics with anti-slip surface (PN18 / anti-slip class B)
  • Non-slip shower tray
  • Anti-slip class PN18

Ben required accessories:

Attention! XX replaces the color code
61 chrome
68 white
69 chrome matt

  • 922600XX drain Tempoplex Plus Compact Ø 90 mm. The installation height of the shower tray can be reduced by 30mm when using the waste set. Attention! This waste set does not comply with EN274
  • 922500XX drain Tempoplex Ø 90 mm
  • 922602XX Replacement drain cover

Technical Data

Technical Data
material Keramik
color/ surface White
length 1400 mm
width 800 mm
depth 4
height 40 mm
product class shower tray
corner model No
shape rectangular
detached No
Semi-detached No
internal depth 12 mm
With slip resistance Yes
With feet No
With apron No
With polystyrene carrier No
model 6232V3
Stain-resistant No
series Subway Infinity
Drain hole diameter 90 mm
radius 0 mm
Height including feet / straps 40 mm
