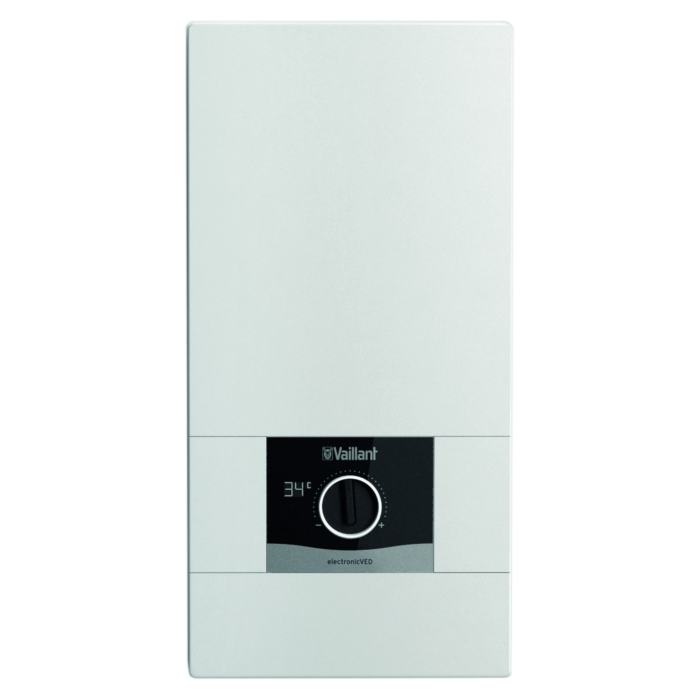

Vaillant electric instantaneous water heater 0010023779
continuously adjustable temperature controller for an outlet temperature of 30-55 °C up to the power limit
7-segment temperature display
electronic power control
Installation system PRO I
Folding frame and rotating hood
suitable for plastic pipe systems according to DIN 1988 and DIN 16892/16893
IP 25 jet water protection allows unrestricted installation in protection area 1
UV-resistant device cover (no yellowing due to UV radiation)
Automatic air bubble detection on all electronic devices
adjustable scalding protection
with cold water connection piece R 1/2 with cold water shut-off valve
Hot water connection piece R 1/2
Mounting plate
Mounting template
Fastening material
Operating and installation instructions
Product data sheet
Energy efficiency label
A high-voltage connection (3~/400V) is required. Approval from the local grid operator may be required. Installation by qualified personnel only.
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
