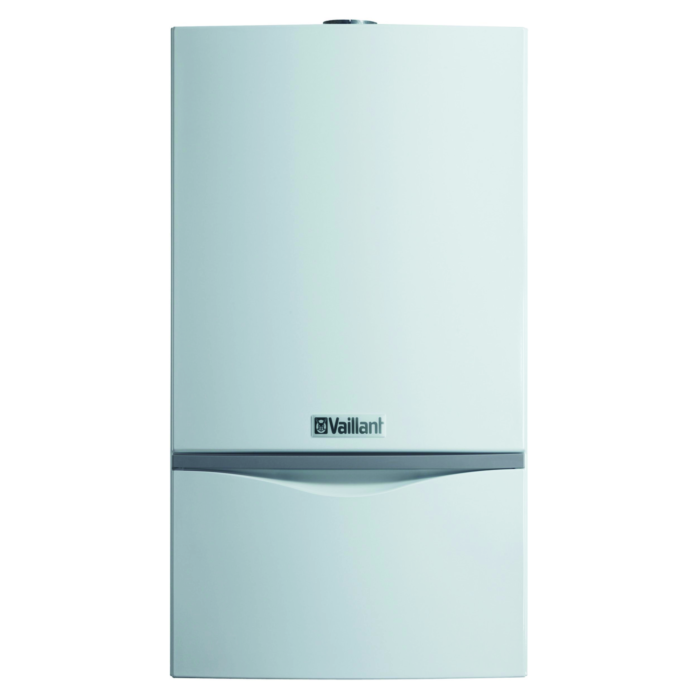

Vaillant VC 104/4-7A atmoTEC exclusive gas wall heater 0010018741
consisting of high-efficiency pump
Water pressure sensor and pressure gauge
12 l expansion tank
automatic quick vent heating safety valve
Vario frame
water-cooled
atmospheric premix burner
electronic partial load adjustment
Priority switching valve and storage connection integrated
hydraulic and gas pre-installation possible
DIA system with illuminated plain text display
Service panel
Gas type Natural gas E
Rated power range 80/60 °C
4.8-10.0 kW
Storage charging capacity 10.0 kW
max. heat load
Heating operation 11.1 kW
Min. heat load: 5.3 kW
Standard efficiency 84% (Hs)/93% (Hi)
Residual pump head 250 mbar
Flow temperature max. 85 °C
Electrical connection 230/50 V/Hz
Flow/return connection G 3/4
Gas connection G 1/2
Exhaust connection 90 mm Height/Width/Depth 800/440/360 mm Weight 39 kg
A high-voltage connection (3~/400V) is required. Approval from the local grid operator may be required. Installation by qualified personnel only.
Attention: For gas appliances, installation only by qualified personnel
Attention: The device may only be installed with the original flue gas accessories from Vaillant!!
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
