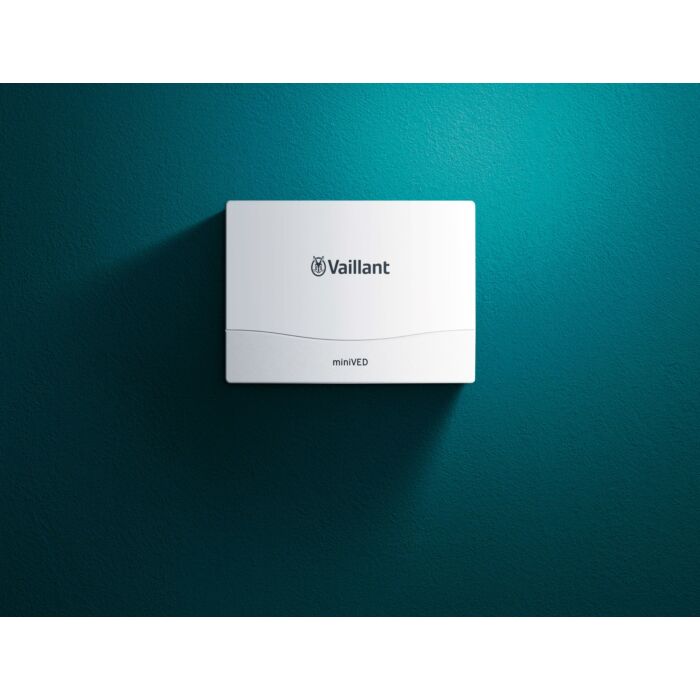

Vaillant miniVED H 3/3N instantaneous water heater 001004442 low pressure
- Hot water in the guest toilet
- Compact dimensions: fits even under small sinks
- Quick and easy hot water with cold water connection
- Up to 65% energy savings
- Durable design – no yellowing
- Low pressure
- Heating output: 3.5 kW
- Continuous hot water output t 30k: 2.2l/min
- Power supply: 230V/50 Hz
- Electrical connection: Schuko plug
- Protection class: IP 25
- Max. inlet temperature: 25 degrees C
- Dimensions: 143 / 191 / 79 mm
- Weight: 4.4 kg
- Connection: R 3/8"
Small, economical, efficient : Our hydraulically controlled miniVED instantaneous water heater is particularly space-saving and can be installed under even the smallest sink in a guest bathroom, for example. It's also suitable for restrooms in office buildings – anywhere where small amounts of hot water are needed. Here, the miniVED works particularly quickly and reliably.
Harmonious integration
Our miniVED impresses with its timeless design and UV-resistant cover, which prevents yellowing. This small instantaneous water heater is available as a pressure and low-pressure unit and in three power ratings. All units are plug-in ready and, thanks to their compact dimensions, can be discreetly installed directly under the sink – a cold water and power connection are all that's needed. Important note: The installation should be carried out by a qualified electrician.
Economical hot water supply
The miniVED delivers pleasantly warm water in seconds and is particularly efficient. The achievable hot water temperature depends on the cold water inlet temperature—that is, the temperature in the water pipes. The miniVED can increase the temperature for handwashing by around 25°C. For example, if the cold water temperature is 15°C, the miniVED can increase it to a maximum of 40°C. Compared to a small electric storage heater, up to 65% energy and water savings can be achieved.
