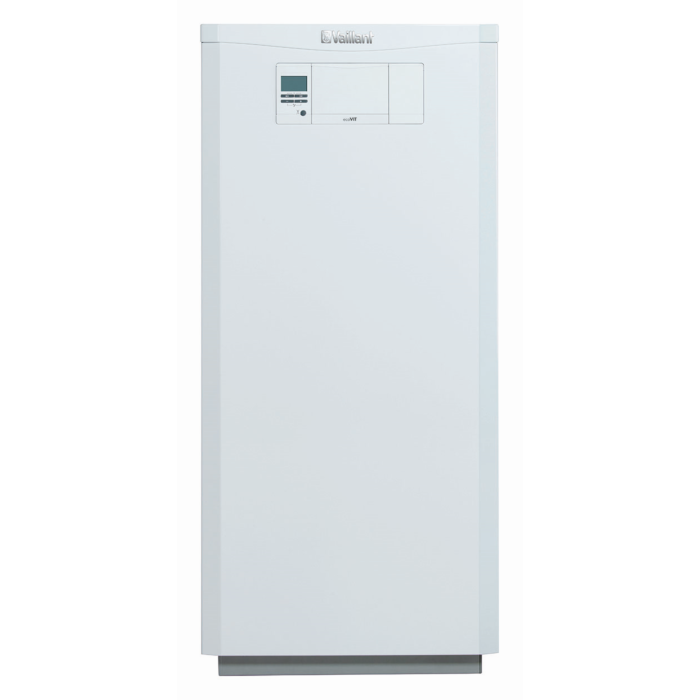

Vaillant ecoVIT VKK 186/5 Gas condensing boiler 0010019503
- Minimal gas consumption thanks to state-of-the-art condensing technology
- modulating power
- large water content
- eBUS-Electronic
- System Pro E
- consisting of: stainless steel condensing boiler
- Water pressure sensor
- Boiler control panel with STB
- STB test button
- Display for diagnostics and troubleshooting
- Installation field for the Vaillant weather-compensated heating controllers multiMATIC 700 and multiMATIC 700f
- Prepared for connection of the system-certified Vaillant air/flue gas ducts
- Gas type: Natural gas E and LL
- Nominal power range 40/30°C - 6-19
- 3 kW
- Nominal power range 60/40°C - 5
- 7-18
- 9 kW
- Max. heat load in heating mode 5
- 4-18 kW
- Efficiency at nominal heat load 60/40 - 105
- 2%
- 40/30 - 107
- 4%
- Amount of condensation at 50/30 degrees C
- approximately 2
- 9 l/h
- PH value
- approximately 3
- 2
- Maximum flow temperature: 85°C
- Electrical connection 230/50 V/Hz
- Flow/return connection Rp 1
- Gas connection Rp 3/4
- Air/exhaust connection 80/125 mm
- Height/Width/Depth 1255/570/700 mm
- Net weight 86 kg
- Water capacity 100 l
- CE PIN CE-0085CQ0373
- Gas appliance category I2ELL
- I3P
- A high-voltage power connection (3~/400V) is required. Approval from the local grid operator may be necessary. Installation must be carried out by qualified personnel only.
- Caution: Gas appliances must only be installed by qualified personnel!
- Attention: The unit must only be installed with original Vaillant exhaust accessories!
