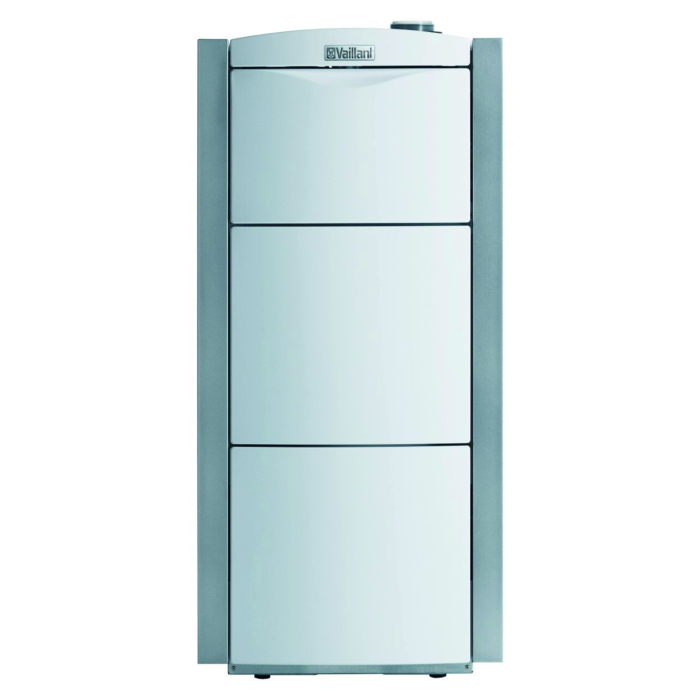

Vaillant ecoVIT exclusiv gas condensing boiler 0010007704

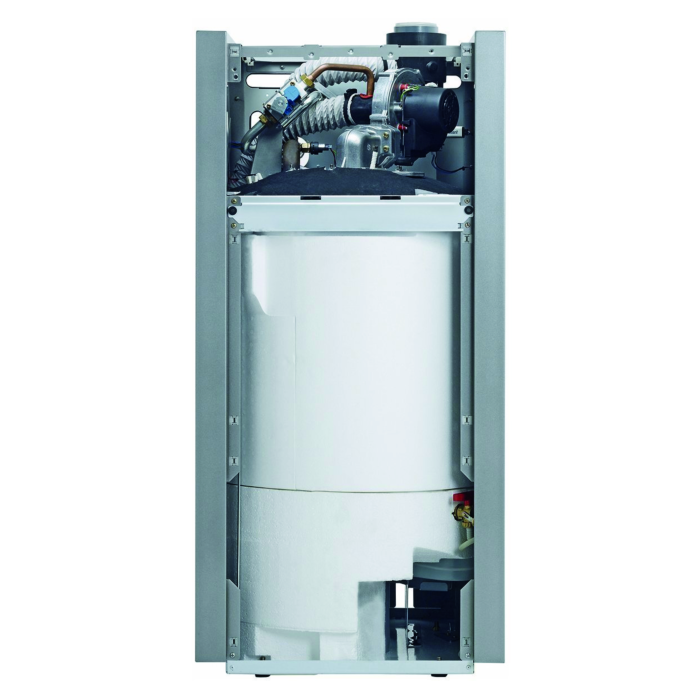

consisting of stainless steel condensing boiler
Water pressure sensor
Boiler switchboard with STB
STB test button
Display for diagnostics and troubleshooting
Installation panel for the Vaillant weather-compensated heating controllers calorMATIC 470f and multiMATIC 700
prepared for connection of the system-certified Vaillant air/flue gas ducts
DIA system with plain text display
illuminated
Gas type Natural gas E
Rated power range 40/30 degrees C/8
2-23.5 kW
60/40 degrees C/7
9-22.4 kW
maximum heat load heating operation 22.0 kW
Standard efficiency 98% (Hs)/109% (Hi)
Condensation water quantity at 40/30 degrees C approx. 2
2 l/h
pH value approx. 3.2
Maximum flow temperature 85 degrees C
Electrical connection 230/50 V/Hz
Flow/return connection Rp 1
Gas connection Rp 3/4
Air/exhaust connection 80/125 mm
Height/Width/Depth 1257/570/691 mm
Dead weight 100 kg
Water content 100 l
A high-voltage connection (3~/400V) is required. Approval from the local grid operator may be required. Installation by qualified personnel only.
Attention: For gas appliances,installation only by qualified personnel
Attention: The device may only be installed with the original flue gas accessories from Vaillant!!
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
