expected to be available again from March 2024

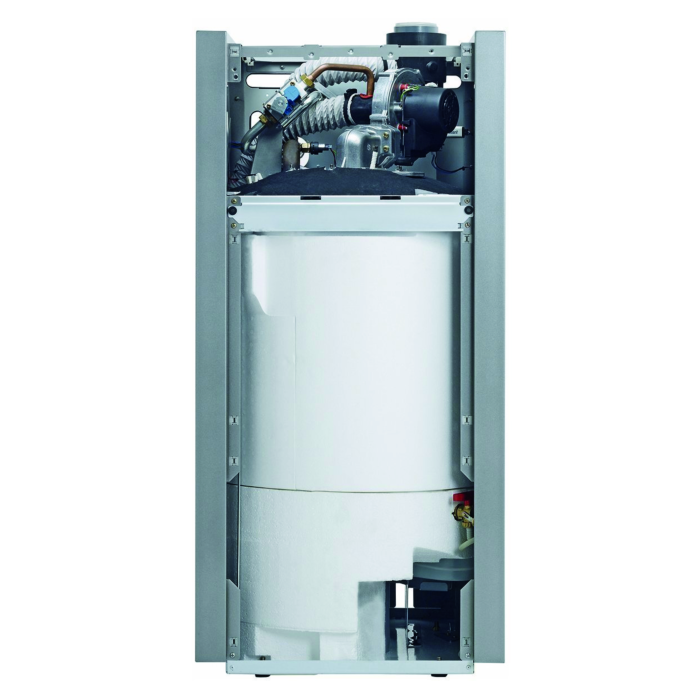

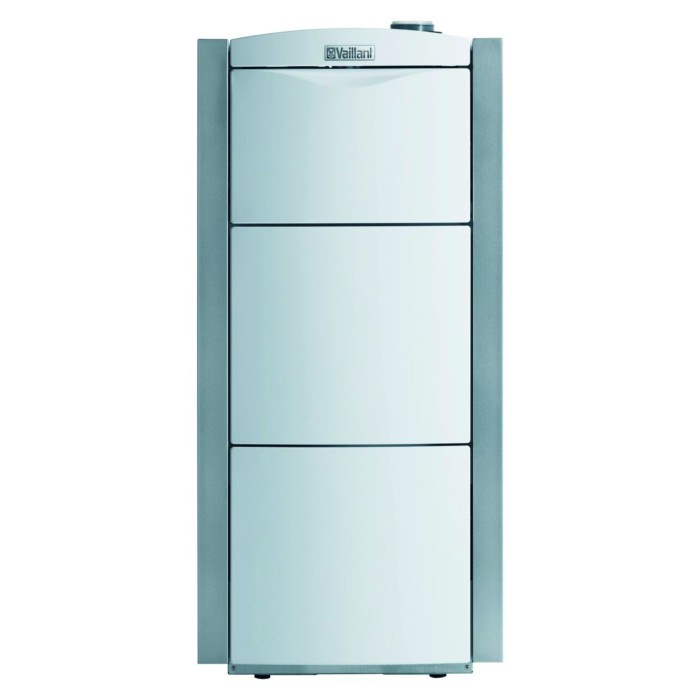

Vaillant ecoVIT exclusiv gas condensing boiler 0010007508
- consisting of: stainless steel condensing boiler
- Water pressure sensor
- Boiler switchboard with STB
- STB test button
- Display for diagnostics and troubleshooting
- Installation panel for the Vaillant weather-compensated heating controllers calorMATIC 470f and multiMATIC 700
- prepared for connection of the system-certified Vaillant air/flue gas ducts
- DIA system with plain text display
- illuminated
- Gas type Natural gas E
- Rated power range 40/30 degrees C/8
- 2-23
- 5 kW
- 60/40 degrees C/7
- 9-22
- 4 kW
- maximum heat load heating operation 22
- 0 kW
- Standard efficiency 98% (Hs)/109% (Hi)
- Condensation water quantity at 40/30 degrees C approx. 2
- 2 l/h
- PH value
- approx. 3
- 2
- Maximum flow temperature 85 degrees C
- Electrical connection 230/50 V/Hz
- Flow/return connection Rp 1
- Gas connection Rp 3/4
- Air/exhaust connection 80/125 mm
- Height/Width/Depth 1257/570/691 mm
- Dead weight 100 kg
- Water content 100 l
- A high-voltage connection (3~/400V) is required. Approval from the local grid operator may be required. Installation by qualified personnel only.
- Attention: For gas appliances, installation only by qualified personnel
- Attention: The device may only be installed with the original flue gas accessories from Vaillant!!
