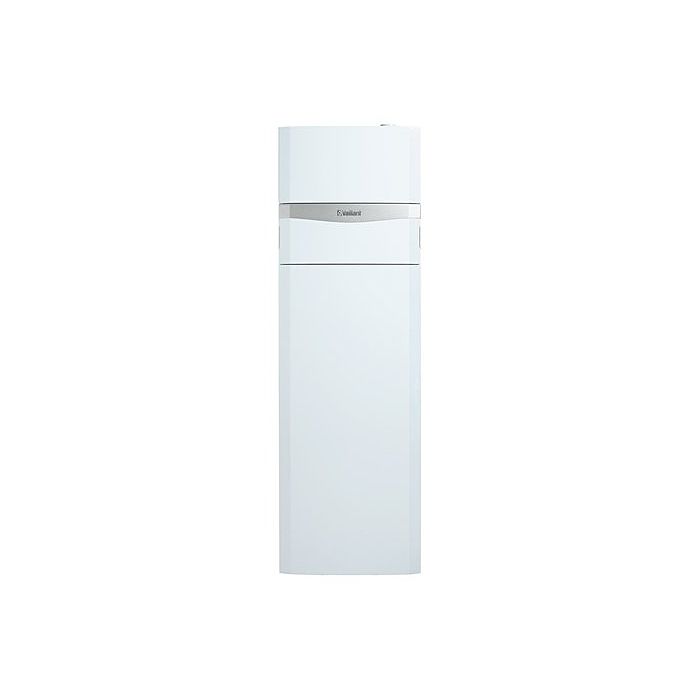

Vaillant ecoCompact VSC 206/4-5 150 0010015602
Gas compact condensing boiler with storage tank
- Article number 0010015602
- Type: ecoCompact VSC 206/4-5 150
- Compact device with integrated layered storage
- Natural gas E
- Attention : Device is supplied without accessories , such as connection kit and control unit.
- Caution: Gas appliances must only be installed by qualified personnel!
Features:
- Standard utilization rate 98% (Hs) / 109% (Hi)
- Multi-sensor system for self-optimization and preventive device analysis
- Aqua-Power-Plus: up to 20% more hot water output
- Aqua condensing system, storage charging control with condensing boiler utilization
- Hot water stratified storage tank up to NL 7.3
- Split Mounting Concept for easy installation in two parts
- Compact device dimensions
Equipment:
- High-efficiency pumps for heating and storage charging
- Water pressure sensor, flow sensor, priority switching valve, 1/2" safety valve and 15 liter expansion vessel
- Secondary heat exchanger made of stainless steel
- Integrated 150-liter stratified hot water storage tank with magnesium sacrificial anode
- Integrated storage control
- DIA system with plain text display, illuminated
- Condensate siphon with outlet hose
Scope of delivery:
- 1 ecoCOMPACT
- 1 package (seals for heating, gas and water connections)
- 1 concentric exhaust connection piece 60/100 PP
- 1 proklima plug (only power size 20kW)
- Conversion kit to natural gas E or LL enclosed
- A high-voltage power connection (3~/400V) is required. Approval from the local grid operator may be necessary. Installation must be carried out by qualified personnel only.
- Caution: Gas appliances must only be installed by qualified personnel!
- Attention: The unit must only be installed with original Vaillant exhaust accessories!
