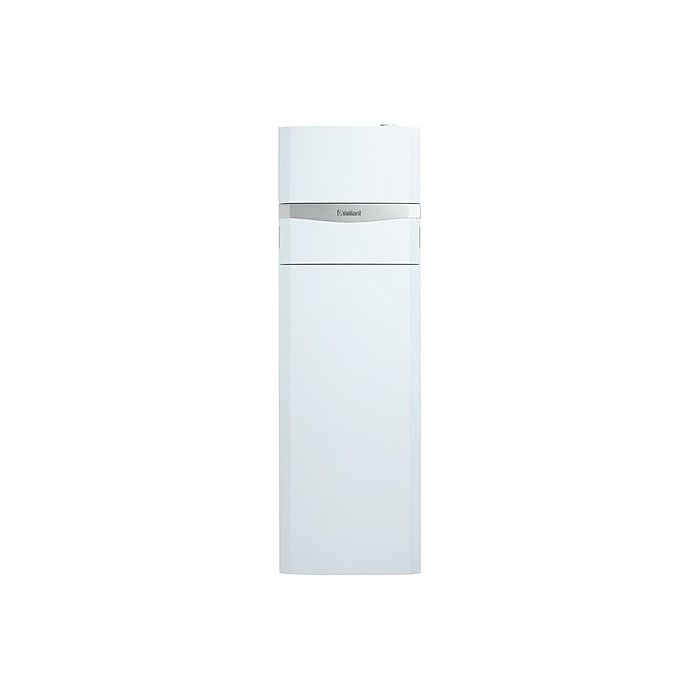

Vaillant ecoCOMPACT gas compact device 0010015597 VSC 146/4-5 150, natural gas E, with condensing technology

Vaillant ecoCOMPACT gas compact appliance 0010015597

• Combination device for heating and hot water
• High-efficiency pumps for heating and storage charging
• electronic gas-air combination
• Multi-sensor system
• all components/accessories in one housing
• Split mounting concept
• Consisting of integrated DHW stratified storage tank (90 liters)
• Stainless steel secondary heat exchanger
• High efficiency charging and circulation pump
• priority switching valve
• pressure sensor
• 15 liters ADG
• Integral condensing heat exchanger made of stainless steel
• Integrated memory control
• DIA system with illuminated symbol display and installation option for a weather-compensated heating controller calorMATIC VRC 700 gas type E
• Rated power range: 40/30 °C
• 3.4-15.2kW
• 60/40ºC
• 3.3-14.7kW
• Storage charging capacity 16.0 KW
• max. heat load memory 16.3KW
• Standard efficiency 98% (Hs)/109% (Hi)
• Modulation range from 20 to 100%
• Flow temperature max. 85 °C
• Electrical connection 230V/50Hz max. electr. Power consumption 70 W
• Flow/return connection Rp 3/4
• Cold/hot water connection Rp 3/4
• Gas connection Rp 3/4
• Air/exhaust connection 60/100 mm
• Weight (empty) 106 kg
• Total tank capacity 90 l
• Height/width/depth 1320/595/693 mm
• Seasonal space heating energy efficiency class A (spectrum A++ to G)
• Seasonal water heating energy efficiency class A (Range A to G)
• Power connection (3~/400V) required. Local network operator approval may be required. Installation only by qualified specialists.
• Warning: Gas appliances may only be installed by qualified personnel
• Caution: The device may only be installed with original Vaillant flue gas accessories!!
