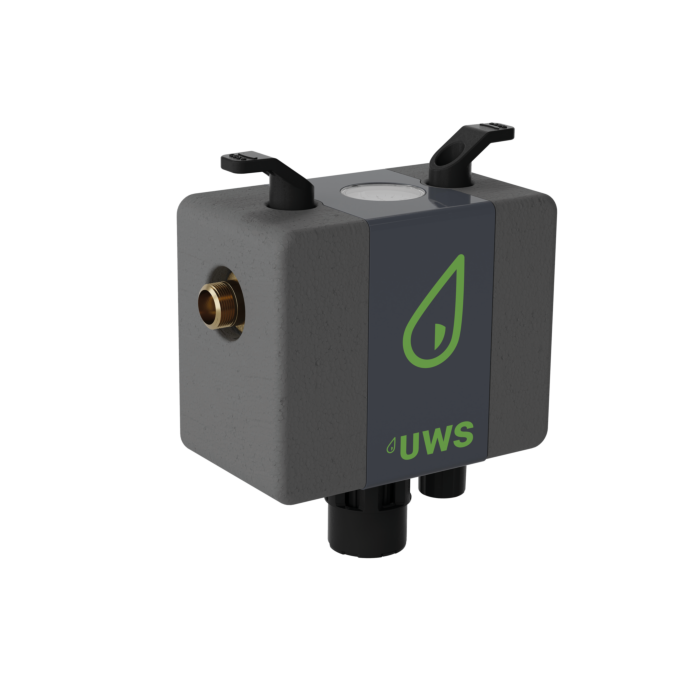

UWS filling combination 300920
The UWS BA DN 15 filling combination is used for the automatic filling of closed hot water heating systems . The integrated BA system separator, compliant with DIN EN 1717, reliably prevents backflow of heating water into the drinking water network. This allows for a direct fixed connection of the heating system to the drinking water installation in accordance with EN 1717.
The unit features inlet and outlet shut-off valves , a pressure reducer with a pressure gauge , and an integrated stainless steel mesh strainer . The pressure reducer ensures a constant and correctly set system pressure.
The output pressure is adjustable from 1.5 to 4 bar and is factory preset to 1.5 bar . The robust housing is made of forged brass and comes with screw connections on both sides and a thermal insulation shell .
Technical data:
- Connection: 1/2" male thread
- Nominal diameter: DN 15 (screw connection DN 20)
- Minimum pre-charge pressure: 2.5 bar
- Maximum pre-charge pressure: 10 bar
- Adjustable back pressure: 0.75 – 5 bar
- Outlet pressure reducer: 1.5 – 4 bar (factory setting 1.5 bar)
- Maximum operating temperature: 65 °C
- Permissible operating temperature (drinking water side): max. 30 °C
- BA system separator according to DIN EN 1717 (fluid category 4)
- Housing material: Forged brass
- Integrated dirt guard made of stainless steel fabric
- The filling combination enables convenient and safe automatic refilling of the heating system at constant system pressure.
