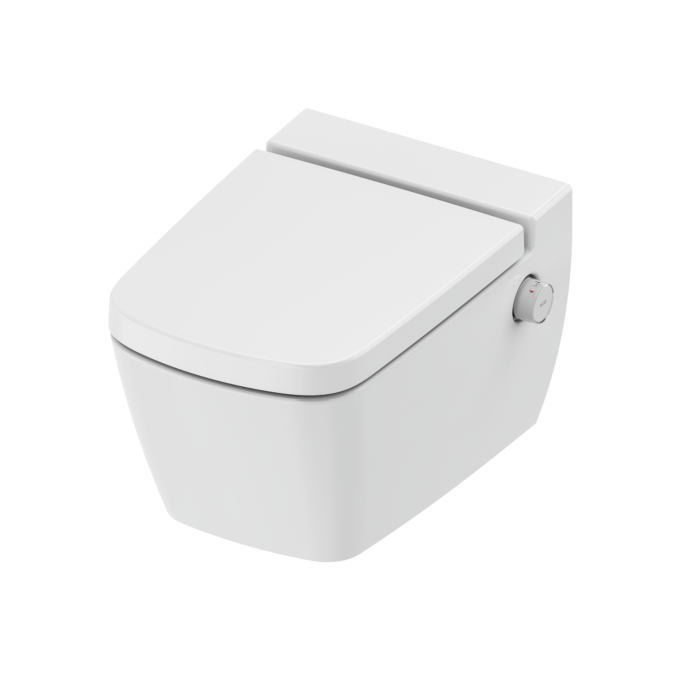

TECE TECEneo shower toilet 9700216
Set consists of:
- TECEone shower toilet with hot and cold water connection (9700200)
- TECE toilet seat with lid CLASSIC (9700600)
- Connection material including soundproofing tape, concealed fastening
TECEone shower toilet, hot and cold water 9700200
Rimless toilet bowl with integrated shower function for convenient water-based cleaning. The shower function operates without electricity via the on-site hot and cold water connection. This toilet bowl is designed for concealed cisterns, easy to install or retrofit, offers customizable combinations, and has a minimum of components for easy maintenance.
Features of the shower function:
- Intuitive operation via side knobs for water temperature and water quantity
- Shower jet continuously adjustable up to 5.6 l/min
- Water temperature can be individually adjusted (max. 38 °C)
- self-cleaning shower wand
- replaceable shower rod caps
- Approval according to EN 1717
- Minimum flow pressure 1.5 bar (max. 10 bar)
Features of the toilet ceramics:
- wall-mounted washdown toilet for 6 and 4.5 litre flush volume
- compact design – projection 540 mm
- Concealed wall mounting and concealed water connections
- rimless ceramic with integrated splash guard
- Pre-fix technology: factory-cast toilet seat attachment for a wobble-free seat and lid (compatible with all TECE shower toilet seats)
- Material: sanitary ceramics, color white
- hygiene-optimized ceramic design
- Approval according to EN 997
- Dimensions (W x H x D): 358 x 350 x 540 mm
Scope of delivery:
- WC ceramic including concealed WC fixing
- Control knobs made of plastic, white-transparent with indication of temperature/water quantity
- Reinforced hoses for water connection to standard angle valves
- Soundproofing
- Shower rod installation tool
A notice:
For the shower function, a hot and cold water connection with angle valves must be provided on site (see upgrade kits).
In combination with TECElux, the lower fixing glass plate order no. 9650109 or 9650110 must be selected.
and
TECE CLASSIC toilet seat with lid
Toilet seat with lid, suitable for TECE (shower) toilets with pre fix technology.
Features of the toilet seat:
- T Cover encloses seat
- pre fix technology for wobble-free fit and lid
- Quick installation thanks to pre-fix technology: plug in and tighten the screw if necessary.
- Hinges made of glass-fiber reinforced high-performance plastic with "Soft-Close" automatic lowering mechanism
- easy weight loss
- easy to clean, complete seat and lid unit removable
- Toilet seat with ergonomic design for comfortable seating
- Prevention of “over-splashing”, e.g., in small children, thanks to the extension of the seat at the front inside.
- made of torsion-resistant duroplast, white
- Approval according to DIN 19516
