TIP TLS 100 E dry-run protection30915

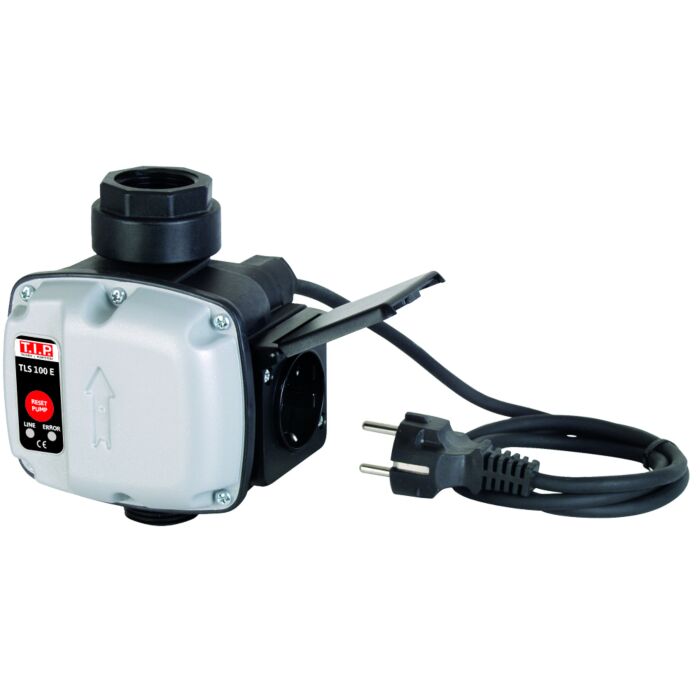

Dry-running protection TLS 100 E - your pumps in the best hands
The TLS 100 E is your reliable partner when it comes to protecting your garden pumps and domestic waterworks from dry running. This electronic flow monitor offers numerous advantages to ensure that your pumps remain in perfect condition:
Optimum dry-run protection: With the TLS 100 E, you can be sure that your pump will not be damaged by dry running. The adjustable switch-off time control ensures that the pump is switched off in good time if the flow is interrupted, be it due to a lack of water, closed pressure lines or similar.
Easy installation: The TLS 100 E is extremely easy to install and can be retrofitted without any problems. This means that you can retrofit your existing domestic waterworks and garden pumps with this dry-run protection to protect them from damage.
Effective monitoring: This device activates your electric pump and keeps it running as long as there is a sufficient amount of liquid flowing through the line. As soon as the flow is disrupted, whether due to lack of water or other causes, a timer switches the pump off to prevent damage caused by dry running.
Optical display The TLS 100 E has an optical function and fault display that shows you the operating status of the dry-run protection at a glance. This way you can always be sure that everything is working properly.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
Protect your pumps and extend their service life with the TLS 100 E dry-run protection. Invest in the safety of your equipment and avoid costly repairs with this reliable flow monitor.
Scope of delivery:
- Electronic dry-run protection
Technical data:
Mains voltage / frequency: 115 - 230 V ~ / 50 - 60 Hz
Max current for connection socket: 12 A
Min. current consumption of the downstream pump under load: 1 A
Protection class: IP44
Connection input: IG 30.93 mm (1“), rotatable
Connection output: AG 33.25 mm (1“)
Max. operating pressure: 10 bar
Timer setting range: 10 – 180 seconds (factory setting 180 s)
Software class: A
Max. temperature of the pumped liquid: 55° C
Connection cable: 1.25 m (H05RN-F)
Weight 0.75 kg
Dimensions (L x D x H): 11 x 12 x 14.5 cm
