TIP TFP 5000 UV 9 pond pressure filter set 30297
TIP Pond Pressure Filter TFP 5000 UV 9 – Clear pond water quality made easy
The TIP pond pressure filter TFP 5000 UV 9 is an excellent choice for pond owners who are looking for an efficient and uncomplicated solution to improve the water quality of their pond. This compact system combines all the essential components for thorough cleaning and ensures a clear and healthy pond environment.
Equipped with a 9 watt UV-C lamp, the TFP 5000 UV 9 takes on the fight against harmful algae and germs. UV-C technology is known for its ability to destroy the DNA of microorganisms, resulting in a significantly clearer and healthier pond water.
The pond pressure filter is supplied as a complete set that includes a powerful filter pump, an 8-liter pressure tank, a function selector switch and all necessary filter materials, hoses and connections. This makes installation particularly simple and user-friendly.
A special feature of the TFP 5000 UV 9 is the function selector switch on the filter head, which allows easy switching between filter operation and backwashing. This feature makes filter maintenance much easier, as it is not necessary to open the filter or change the installation.
With its capacity, the TIP pond pressure filter TFP 5000 UV 9 is ideal for ponds with a volume of up to 5,000 litres. It ensures that the water in your pond always remains clear and healthy, which not only enhances the appearance of your garden, but also promotes the well-being of your pond inhabitants.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all required spare parts for up to a decade after the date of purchase.
By investing in the TIP pond pressure filter TFP 5000 UV 9, you ensure consistently high water quality and create an attractive and livable habitat for fish and plants in your garden.
.

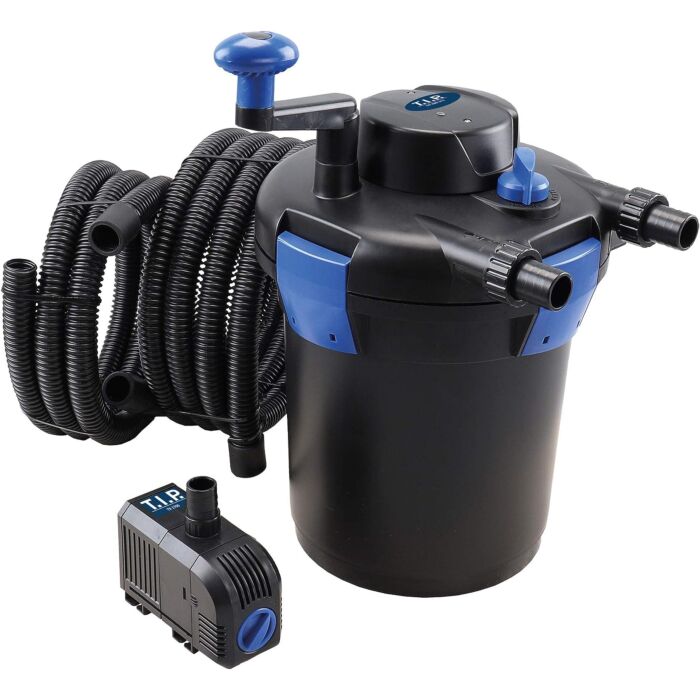

Scope of delivery:
- filter container
- pump
- 3 BIOMEC filter mats
- UV-C lamp with ballast
- 2 m drain and 3 m inlet hose (Ø 19 mm)
- Hose connection accessories
- cleaning crank
Technical data:
Voltage / frequency pump: 220 – 240 V~ / 50 Hz
Max. flow rate: 1,500 l/h
Max. delivery head / Max. pressure: 1.8 m / 0.18 bar
Rated power: 25 watts
immersion depth max.: 2 m
Cable length pump: 10 m
UV-C tube: 9 watts
Cable length UV-C lamp: 3 m
Filter inlet and outlet: ø 19 mm
filter container: 8 l
pond volume max.: 5,000 l
Delivery rate and delivery head:
1.5 m – 400 l/h
1.2 m – 750 l/h
0.9 m – 900 l/h
0.6 m – 1,150 l/h
0.3 m – 1,300 l/h
The flow rate of a pump depends mainly on the discharge head. The term 'discharge head' refers to the height difference between the water surface and the water outlet. The table above shows the performance of the pond pressure filter TFP 5000 UV 9 at different discharge heads. At a discharge head of 0.3 meters, this For example, a pump with a flow rate of 1,300 liters per hour can be expected.
