TIP TFP 10000 UV 11 pond pressure filter set 30298
TIP Pond Pressure Filter TFP 10000 UV 11 – Effective pond water cleaning made easy
The TIP pond pressure filter TFP 10000 UV 11 represents an advanced solution for all those who want to sustainably improve the water quality of their pond. This complete set is specially designed to enable you to install it quickly and easily, as it includes not only the highly effective pond pressure filter but also a corresponding pump and includes all necessary inlet and drain hoses.
The efficiency of this system is maximized by the overpressure generated in the filter. This pressure increases the effectiveness of the various filter media used in this system. These include filter sponges and bioballs, which in combination with the UV-C lamp ensure comprehensive cleaning of the pond water. ensure.
A central element of the TFP 10000 UV 11 is the 11 watt UV-C lamp, which enables a significant reduction in algae formation. This contributes significantly to clear and healthy pond water and thus improves the living conditions for fish and plants.
The user-friendliness is further increased by the integrated backwash function and a crank to assist with cleaning. A contamination indicator informs you in good time about the need to clean the filter, which can be carried out without much effort thanks to the crank.
Another advantage of the TFP 10000 UV 11 is its flexibility in terms of placement. The filter container can be discreetly sunk into the ground, which allows for a visually appealing and unobtrusive integration into the pond landscape. Robust clamp fasteners guarantee the secure positioning of the filter.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all required spare parts for up to a decade after the date of purchase.
With the TIP pond pressure filter TFP 10000 UV 11 you are choosing a system that not only impresses with its performance, but also with its user-friendliness. It is the ideal choice for pond owners who value clear, clean and healthy water in their garden paradise. .

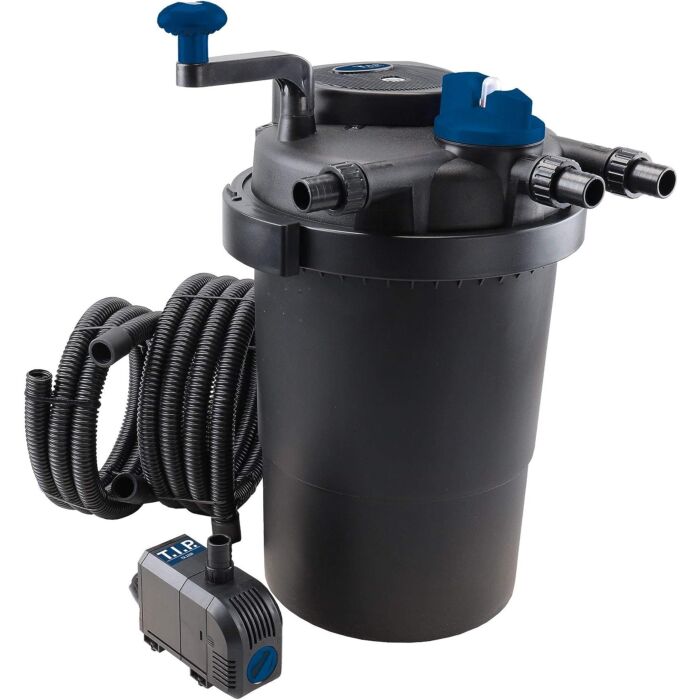

Scope of delivery:
- Filter container with contamination indicator
- pump
- 4 BIOMEC filter mats and bioballs
- UV-C lamp with ballast
- 2 m drain and 3 m inlet hose (Ø 19 mm)
- Hose connection accessories
- cleaning crank
Technical data:
Voltage / frequency pump: 220 – 240 V~ / 50 Hz
Max. flow rate: 2,000 l/h
Max. delivery head / Max. pressure: 2.0 m / 0.20 bar
Rated power: 35 watts
immersion depth max.: 2 m
Cable length pump: 10 m
UV-C tube: 11 watts
Cable length UV-C lamp: 3 m
Filter inlet and outlet: ø 19 mm
filter container: 20 l
pond volume max.: 10,000 l
Delivery rate and delivery head:
1.5 m – 700 l/h
1.2 m – 1,050 l/h
0.9 m – 1,250 l/h
0.6 m – 1,500 l/h
0.3 m – 1,850 l/h
The flow rate of a pump depends mainly on the discharge head. The term 'discharge head' refers to the height difference between the water surface and the water outlet. The table above shows the performance of the pond pressure filter TFP 10000 UV 11 at different discharge heads. At a discharge head of 0.3 meters, this For example, a pump can have a flow rate of 1,850 liters per hour.
