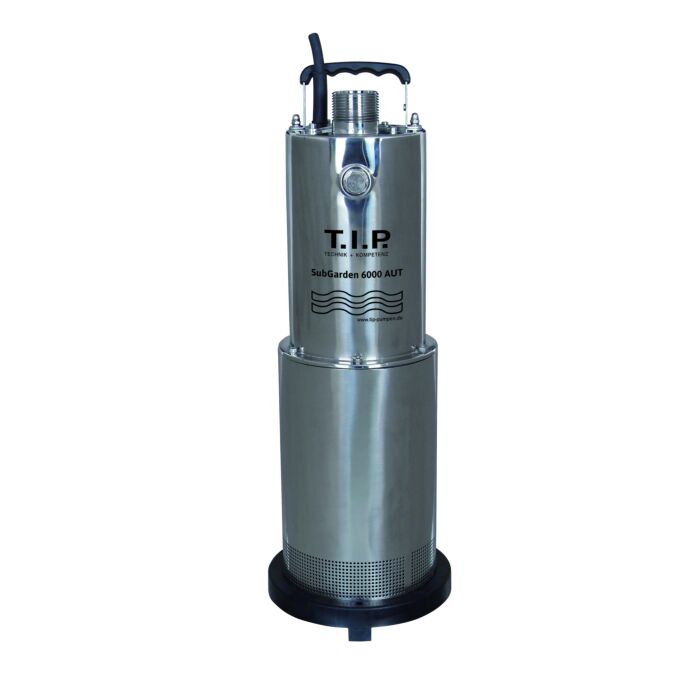

TIP Subgarden 6000 AUT 4in1 cistern pump 30137
SubGarden 6000 AUT: The innovative all-in-one combination irrigation pump
The SubGarden 6000 AUT represents a revolutionary solution in the field of irrigation technology. This multifunctional pressure pump is a true all-rounder and offers unique flexibility for pumping water in different situations.
With this innovative pump, you get not just one product, but two powerful pumps in one device. It can be used both as a surface pump to pump water from nearby natural bodies of water, and as a submersible pressure pump, for example to empty your rainwater tank or to automatically water your garden. The best thing about it is that you can make these modifications quickly and without tools, so you can respond flexibly to the changing requirements of your garden or water project.
The SubGarden 6000 AUT is not only versatile but also extremely efficient. It has an integrated automation system that automatically controls operation depending on the water conditions. This not only saves you time but also energy and resources. The pump is perfect for watering your garden, emptying tanks or pumping water from various sources.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
In addition, the SubGarden 6000 AUT is durable and reliable. It is designed to operate reliably even in demanding environments. This innovative pumping system is the ideal choice for anyone looking for a practical and powerful solution for their irrigation and water pumping needs.
Scope of delivery:
- Pump with connection cable
- Two connectors
- pump housing
- lowering rope
Technical data:
Max. flow rate: 6,000 l/h
Head / pressure max.: 43 m / 4.3 bar
Rated power: 1,000 watts
Pressure connection: 41.91 mm (1 ¼" AG)
Suction connection: 47.80 mm (1 ½" AG)
Pump housing: stainless steel
Grain size max.: 1 mm
Temperature max. medium: 35 °C
max. immersion depth: 12 m
Number of sprinklers max.: 5
Connection cable: 15 m / H07RN8-F
Delivery rate and delivery head:
40 m – 580 l/h
30 m – 2,510 l/h
20 m – 3,960 l/h
10 m – 5,060 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction point. The table above shows the performance of the SubGarden 6000 AUT combination irrigation pressure pump at different delivery heads. For example, with a delivery head of 20 meters, this pump can expect a delivery rate of 3,960 liters per hour.
Maximum number of sprinklers: 5
