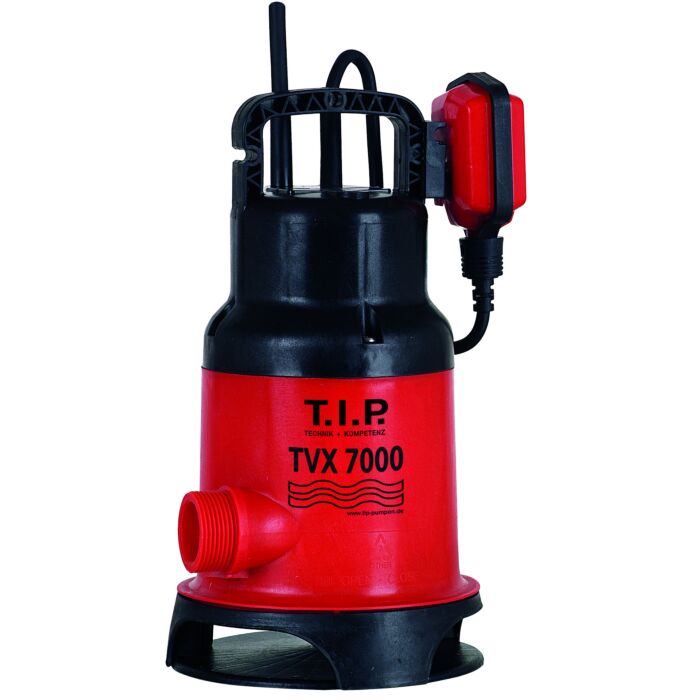

TIP TVX 7000 dirty water submersible pump 30268
TIP dirty water submersible pump TVX 7000 – your solution for efficient water management!
Whether you need to handle clear or dirty water up to a grain size of 20 mm, the TVX 7000 is the ideal all-purpose submersible pump for all your needs.

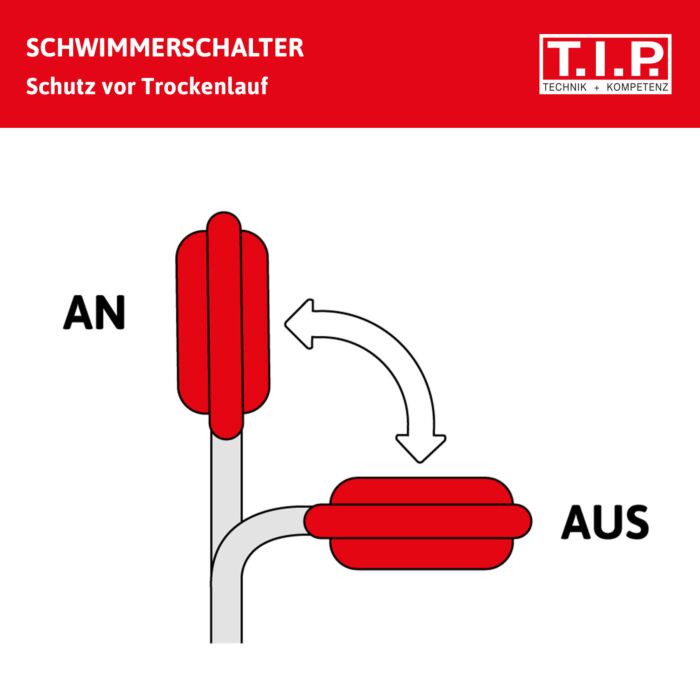

Versatile and powerful: This pump is extremely versatile and can handle a variety of tasks with ease. With its integrated float switch, it allows automatic operation, making your work even easier.
Efficient protection against blockages: The TVX 7000 has a vortex impeller that effectively prevents the pump from clogging. It swirls and breaks up dirt particles so that the pump runs smoothly.
Suitable for every application: Whether you need to empty excavation pits and garden ponds, drain basements after flooding or manage sewage systems in rural areas, this all-round submersible pump is at your side.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
Scope of delivery:
– Hose connection bend 39.59 mm (1 ¼" IG) + hose connection Ø 32 mm
Technical data:
Max. flow rate: 7,000 l/h
Delivery head/pressure max.: 5 m / 0.5 bar
Rated power: 300 watts
immersion depth max.: 7 m
Pump outlet: 41.91 mm (1 ¼" AG)
Suction level min.: 30 mm
dirt particle size max.: 20 mm
Delivery head / delivery rate:
4 m - 720 l/h
3 m - 3,480 l/h
2 m - 5,260 l/h
1 m - 6,100 l/h
The flow rate of a pump depends mainly on the discharge head. The table above shows the performance of the TVX 7000 submersible dirty water pump at different discharge heads. Example: If you pump water from a depth of 3 meters, you can expect a flow rate of 3,480 l/h per hour from this pump.
