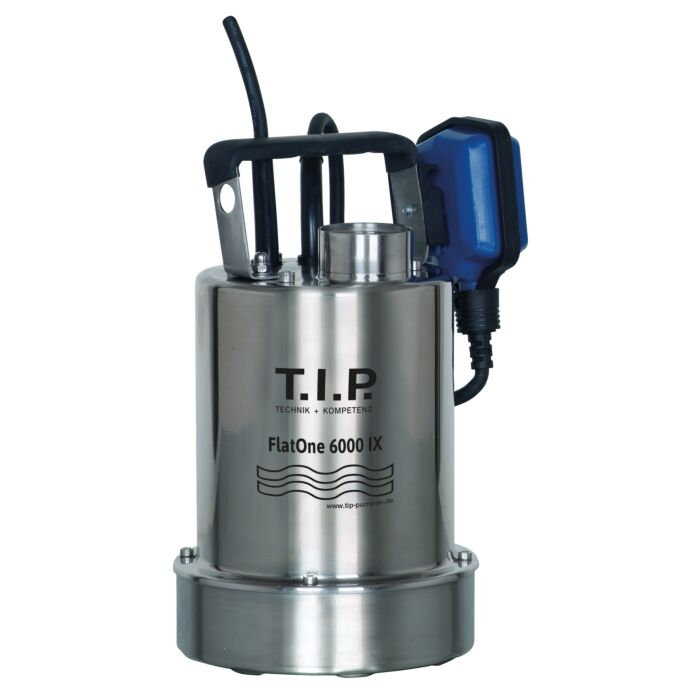

TIP FlatOne 6000 INOX Pool Drainage Submersible Pump 30440
FlatOne 6000 INOX - your powerful solution for efficient irrigation and drainage tasks!

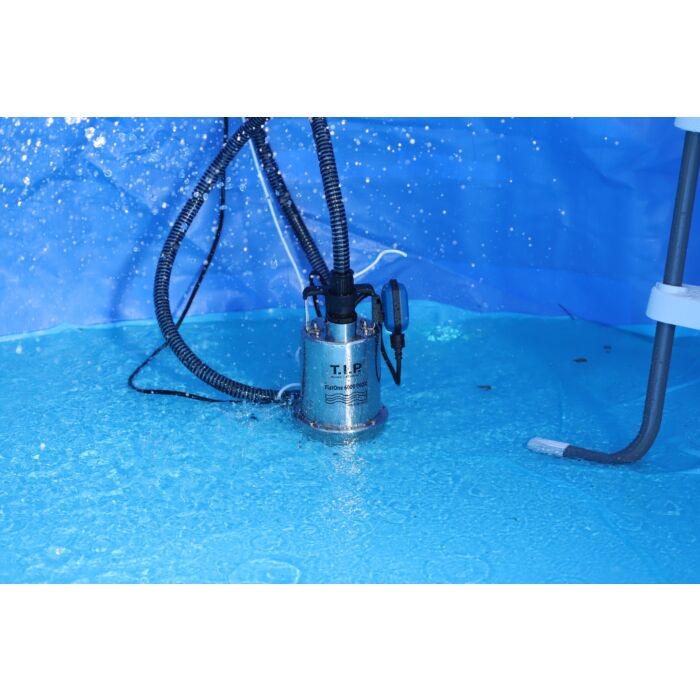

The TIP FlatOne 6000 INOX is the perfect solution for special applications. This submersible pump is ideal for use with clear or slightly dirty water and is ideal for drainage and irrigation tasks. But that's not all - this powerful pump can also be used to pump out swimming pools, cisterns and containers.
The outstanding feature of this pump is its specially designed pump base, which allows flat suction even at a residual water level of just 1 mm. This prevents foils from being sucked in, making it the perfect choice for draining rooms or pools. The vertical outlet arrangement and the integrated check valve also enable it to be used as a drainage pump.
With the TIP FlatOne 6000 INOX you have the ideal solution for a wide range of tasks. It is reliable, powerful and versatile. Invest in this pump and experience the efficiency and reliability that your drainage and irrigation projects require.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
Scope of delivery:
- Multi-dimension connector (1 ¼" AG)
- check valve
Technical data:
Rated power: 300 watts
Delivery head/pressure max.: 6 m / 0.6 bar
Max. flow rate: 6,000 l/h
Pump housing: durable stainless steel
Suction level min.: 1 mm in manual operation
dirt particle size max.: 1 mm
Max. immersion depth: up to 7 m
Cable length: 10 m long connection cable for flexible installation
Pumped liquid temperature max.: 35 °C
Pressure connection: 39.59 mm (1 ¼" IG)
Delivery head / delivery rate:
5 m – 2,150 l/h
4 m – 3,400 l/h
3 m – 4,250 l/h
2 m – 4,900 l/h
1 m – 5,550 l/h
The flow rate of a pump depends mainly on the discharge head. The table above shows the performance of the FlatOne 6000 INOX drainage pool emptying pump at different discharge heads. Example: If you pump water from a depth of 3 meters, you can expect a flow rate of 4,250 l/h per hour with this pump.
