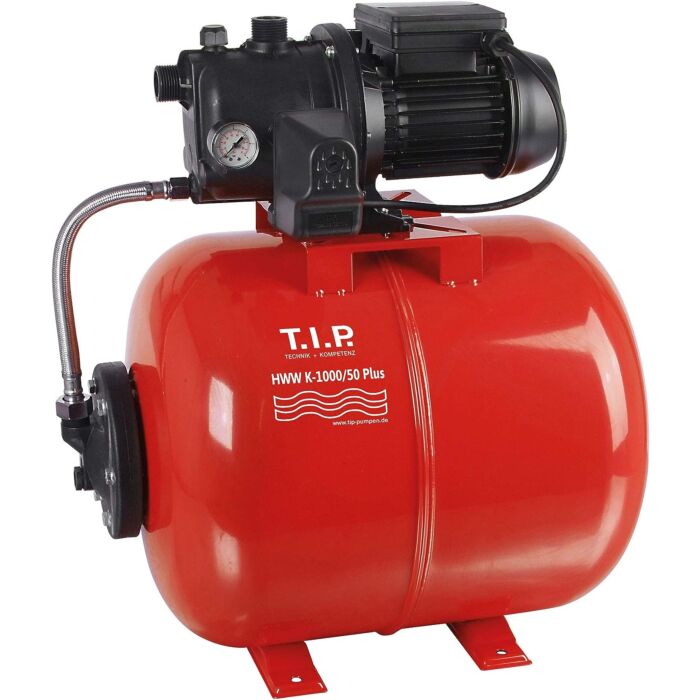

TIP HWW K-1000/50 Plus domestic waterworks 30189
Continuous water supply with the domestic waterworks HWW K-1000/50 Plus
The powerful HWW K-1000/50 Plus domestic waterworks is the answer to your continuous water supply. Equipped with a self-priming, powerful jet pump and a high-quality plastic pump housing, this domestic waterworks offers maximum efficiency and low switching frequency.
The built-in 50-liter steel pressure vessel ensures constant water pressure and enables a smooth water supply system. The hydraulic unit, made of robust Noryl, and the maintenance-free capacitor motor with thermal overload protection guarantee reliable and long-lasting performance.
The pressure switch is already preset to 1.6 bar switch-on pressure and 3 bar switch-off pressure and can be flexibly adapted to local conditions. Thanks to the high-quality EPDM membrane, your water is always clean and protected.
Thanks to the large pressure vessel, the domestic waterworks works more efficiently, reduces power consumption and minimizes operating noise. The reduced frequency of use also protects the device and extends its service life.
Whether it's automatic domestic water supply from wells and cisterns, garden irrigation or automatic sprinkling - the HWW K-1000/50 Plus is the ideal solution for your water supply needs. Rely on your water flow being constant and reliable and experience an uninterrupted water supply in your home.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
Technical data:
Max. flow rate: 3,500 l/h
Max. delivery head / Max. pressure: 46 m / 4.6 bar
Rated power: 800 watts
Pressure connection: 33.25 mm (1" AG)
Suction connection: 33.25 mm (1" AG)
Pressure vessel: 50 l / steel
Pump housing: plastic
Maximum number of sprinklers: 3
Delivery rate and delivery head:
40 m – 450 l/h
30 m – 1,050 l/h
20 m – 2,600 l/h
10 m – 3,000 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water extraction point. The table above shows the performance of the HWW K-1000/50 Plus domestic waterworks at different delivery heads. For example, with a delivery head of 10 meters, this pump can expect a delivery rate of 3,000 liters per hour.
