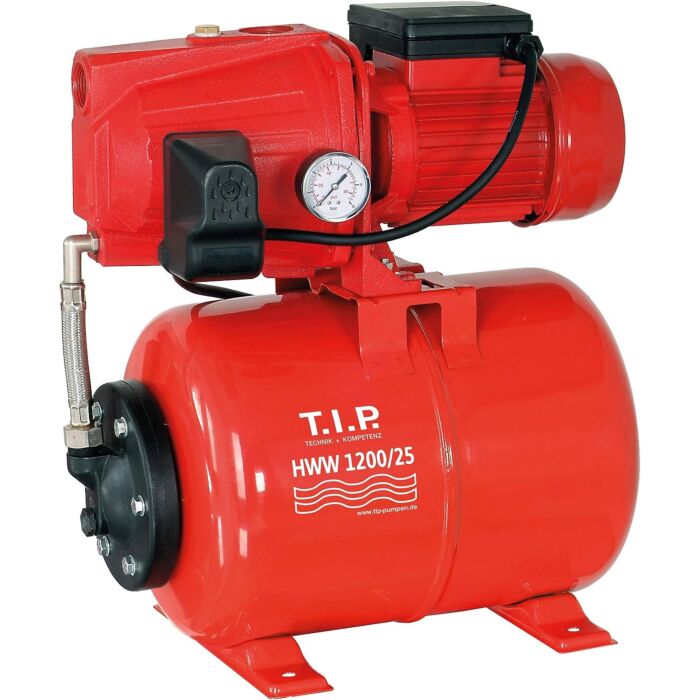

TIP HWW 1200/25 domestic waterworks - cast iron 31111
Reliable water supply with the HWW 1200/25 domestic waterworks
The HWW 1200/25 domestic waterworks is a powerful and reliable solution for your water supply. With its self-priming jet pump and high-quality cast iron pump housing, it offers powerful performance. The 22-liter steel pressure vessel ensures a constant pressure supply, while the Noryl hydraulic unit ensures durability and efficiency.

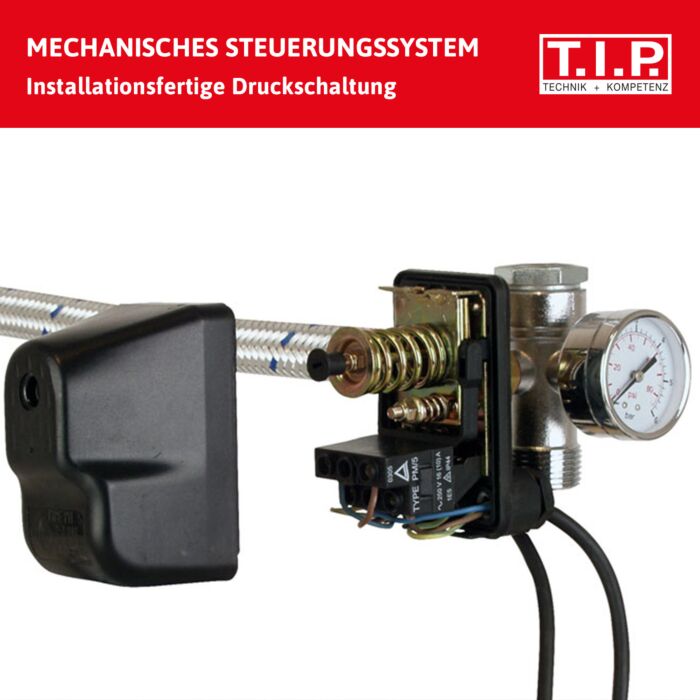

The maintenance-free capacitor motor is equipped with thermal overload protection, which ensures safe operation. The pressure switch is already preset to 1.6 bar switch-on pressure and 3 bar switch-off pressure and can be flexibly adapted to local conditions. The domestic waterworks is equipped with a high-quality EPDM membrane, which ensures an efficient water supply.
This domestic waterworks is ideal for automatically supplying your home with water from wells or cisterns. It is also perfect for garden watering and automatic irrigation. Rely on the HWW 1200/25 domestic waterworks for a constant and reliable water supply in your home.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
Technical data:
Max. flow rate: 5,000 l/h
Max. delivery head / Max. pressure: 50 m / 5.0 bar
Rated power: 1,200 watts
Pressure connection: 30.93 mm (1" IG)
Suction connection: 30.93 mm (1" IG)
Pressure vessel: 22 l / steel
Pump housing: cast iron
Maximum number of sprinklers: 5
Delivery rate and delivery head:
40 m – 1,700 l/h
30 m – 2,950 l/h
20 m – 4,000 l/h
10 m – 4,600 l/h
The delivery rate of a pump depends mainly on the delivery head. The term 'delivery head' refers to the height difference between the water surface and the water outlet. The table above shows the performance of the HWW 1200/25 domestic waterworks at different delivery heads. For example, with a delivery head of 10 meters, this pump can expect a delivery rate of 4,600 liters per hour.
