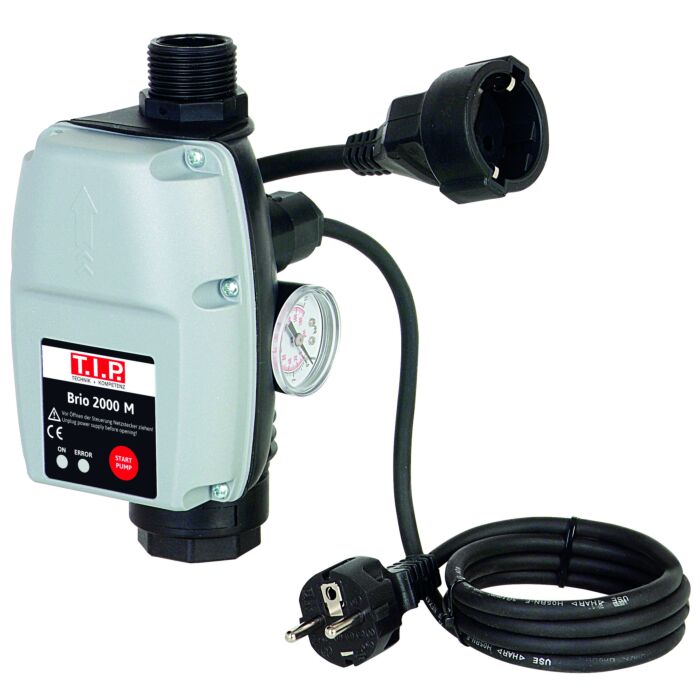

TIP BRIO 2000 M Electronic Pump Control 30241
BRIO 2000-M - Your key to intelligent pump control
The BRIO 2000-M electronic control system offers you an efficient way to automate your pressure pump with more than 1.5 bar. This intelligent solution not only protects against dry running, but also optimizes the operation of your pump. Here are the outstanding features at a glance:
Easy installation: The BRIO 2000-M is extremely easy to install and does not require any complex interventions. You can easily automate your existing pressure pump and benefit from the advantages that this system offers.
Dry-run protection: Protect your pump from damage caused by dry running. The BRIO 2000-M detects the minimum pressure and switches the pump on automatically as soon as this is reached. Once the consumers, such as water taps, have been closed, the pump switches off automatically. This not only saves energy, but also extends the service life of your pump.
Pressure gauge and double nipple: The BRIO 2000-M comes with a pressure gauge and a double nipple to make it easier for you to check and connect.
Optimum operating conditions: The BRIO 2000-M control system operates at liquid temperatures of up to 55 °C and an operating pressure of maximum 10.0 bar. The switch-on pressure is adjustable in the range from 1.0 to 3.5 bar.
10 years of peace of mind - our exclusive after-sales guarantee: Your satisfaction and trust in our products are our top priority. That's why you not only get a first-class product, but also a promise for the future. We offer you an exclusive 10-year after-sales guarantee on spare parts. What this means for you: We guarantee the availability of all the spare parts you need for up to a whole decade after the date of purchase.
With the BRIO 2000-M you get a reliable control system that improves the performance of your pressure pump while protecting against damage caused by dry running. Automate your pump and make your everyday life easier. Invest in the future of your water supply with BRIO 2000-M.
Scope of delivery:
- Electronic dry-run protection with pressure gauge
- double nipple
Technical data:
Mains voltage / frequency: 230 V~ 50 Hz
Max current for device connection: 12 A
Protection class: IP65
Connection input: IG 30.93 mm (1 “), rotatable
Connection output: AG 33.25 mm (1 “)
Max. operating pressure: 10 bar
Switch-on pressure setting range: 1.0 – 3.5 bar
Preset switch-on pressure: 1.5 bar
Max. size of pumped solids: 0 mm
Temperature of the pumped liquid: 2 - 55 °C
Connection cable: 1.3 m (H05RN-F)
Weight (net): 0.75 kg
Dimensions (L x D x H): 10 x 10 x 19.5 cm
