Syr - Sasserath Safety Group 0024.20.000 DN 20, 6 bar, R 3/4, raw yellow

Name: Syr - Sasserath Safety Group 0024.20.000 DN 20, 6 bar, R 3/4, raw yellow
Brand: Syr - Sasserath
SKU: 002420000
Price: 102.34 EUR
Availability: InStock

€102.34

instead of €232.57 **

-56% You're saving €130.23

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 100

Part Number: 002420000

Questions about the article?

+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm

info@skybad.de

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

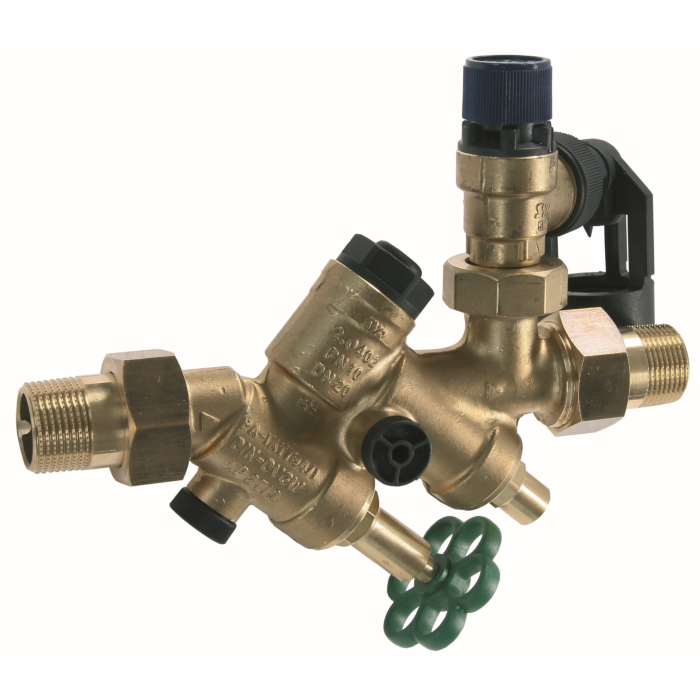

Syr - Sasserath Safety Group 0024.20.000

for the connection of closed drinking water heaters acc. DIN 1988
DVGW approved and noise 2000 in class 2000
consisting of shut-off valve
Check Valves with test facility
second shut-off valve (DN 20)
Membrane safety valve with valve seat made of Stainless Steel and extendable drain funnel
Pressed brass housing
Max. Inlet pressure: 10 bar according to DIN EN 1488
Max. Operating pressure: max. 80% of the response pressure of the safety valve
Max. Operating temperature: 30 ° C
Medium: drinking water
Installation position: any
Max. Nominal content TWE: DN 15: 200 l / DN 20: 2000 000 l
Max. Heating capacity: DN 15: 75 KW / DN 20: 150 KW
Component identifier TÜV-SV-10-545-DN-WNp
ABP No .: PA-IX 1794 / I
