Syr - Sasserath security center 4807.20.000 12 l, MAG
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 100
Part Number: 480720000
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

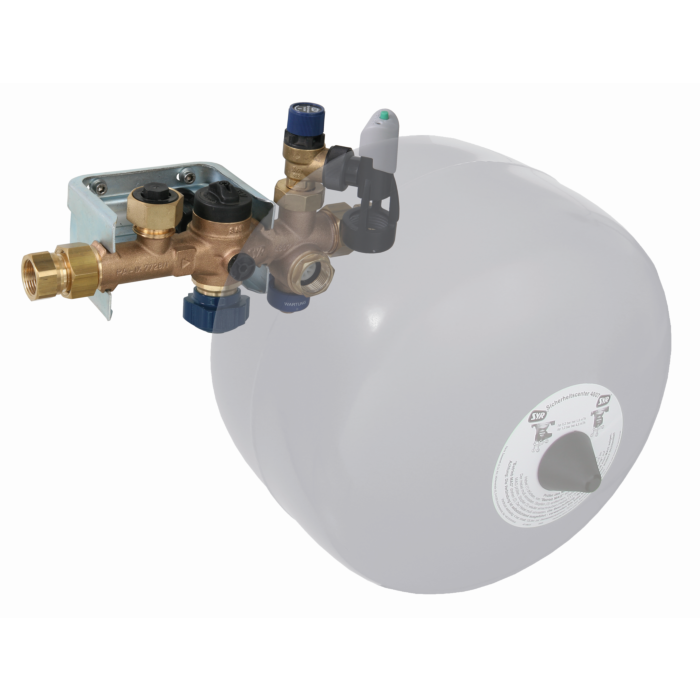

Syr - Sasserath Security Center 4807.20.000
- for the connection of closed drinking water heaters up to max. 560 l in accordance with DIN 1988 and DIN 4807
- DVGW-approved and noise protection tested in class 1
- consisting of a connection for an additional cold water consumer
- Backflow preventer with test device
- double barrier
- Diaphragm safety valve
- Flow fitting with integrated maintenance shut-off
- membrane expansion tank
- Mounting plate with compensation screw connection and system check
- Gunmetal body
- Replacement upper part for the membrane safety valve in 6/8 and 10 bar included in the scope of delivery
- minimum operating pressure 2 bar
- maximum operating pressure 16 bar
- max. operating temperature 30 °C inlet temperature
- Medium drinking water
- Response pressure 6/8 and 10 bar with enclosed cartridges
- Any installation position
- Judge down
