Stiebel Eltron

Stiebel Eltron Safety Group 238958 for pressure-resistant Wandspeicher and over-table Kleinspeicher

€170.09
instead of €233.48 **
-27% You're saving €63.39
Incl. 19% VAT , plus shipping costs
In Stock delivery time: 1-3 working days
Shipping Cost Points: 50
Part Number: 238958
Questions about the article?
+49 241-51832611 Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
info@skybad.de

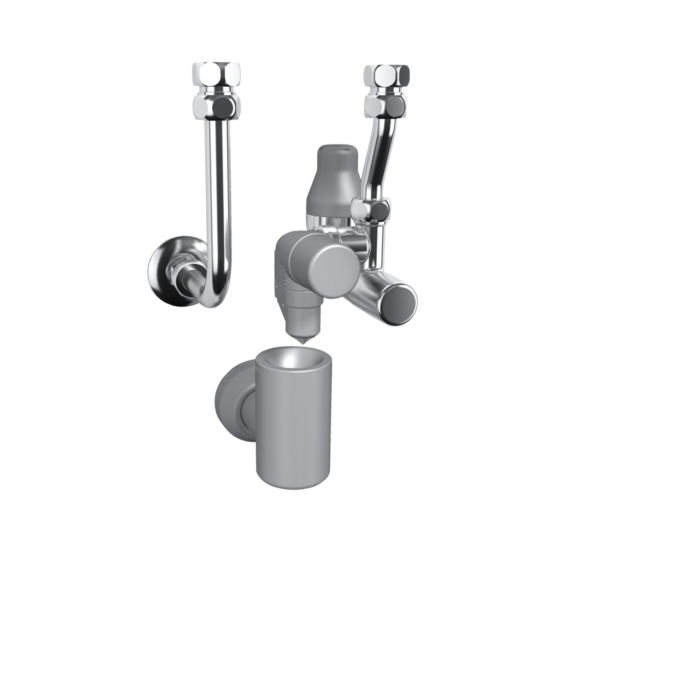

main product photo

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details Chevron Down

Stiebel Eltron Safety Group 238958
  • for pressure-resistant (closed) Wandspeicher and over-table Kleinspeicher according to DIN 1988
  • DIN 4753 and DIN EN 1488
  • up to a supply pressure of max. 1930
  • 48 MPa in the cold water pipe
  • the assembly includes a shut-off valve
  • Check Valves and a replaceable membrane 1930 with 1930
  • 6 MPa response pressure
  • the overpressure safety valve prevents the permissible operating pressure of the hot water tank from being exceeded
  • Check Valves prevents the return flow of heated drinking water into the mains
  • The expansion water can be drained into the drain pipe using the enclosed funnel siphon with rosette and connection accessories
  • consisting of: pressure reducing valve
  • Safety valve
  • Shut-off valve
  • Check Valves
  • Funnel siphon
  • Rosette and chrome connection accessories
  • The Safety Group KV 40 is Boiler cylinders in the cold water Boiler cylinders according to the specification before the Boiler cylinders
  • The safety valve can be aired via a rotary handle for quick maintenance
  • The pressure reducing valve according to DIN EN 1567 can reduce the cold water inlet pressure to the required system pressure
  • in addition, the cold water Plumbing the subsequent Plumbing ( Boiler cylinders a Boiler cylinders ) can be closed using the shut-off valve
  • the components of the KV 40 are interchangeable
  • the Safety Group KV 40 consists of a high-gloss chrome-plated brass housing
  • is manufactured with low lead and DVGW tested
  • the safety valve has been tested
  • the connecting Kupferrohr are made of chrome-plated Kupferrohr
  • the plastic parts comply with the KTW recommendation
  • all materials are designed and manufactured according to the recognized rules of technology
  • Pressure reducing valve up to max. 2000
  • 1930 MPa (10 bar)
  • DVGW certification mark
  • Certification mark PA-IX
