Details

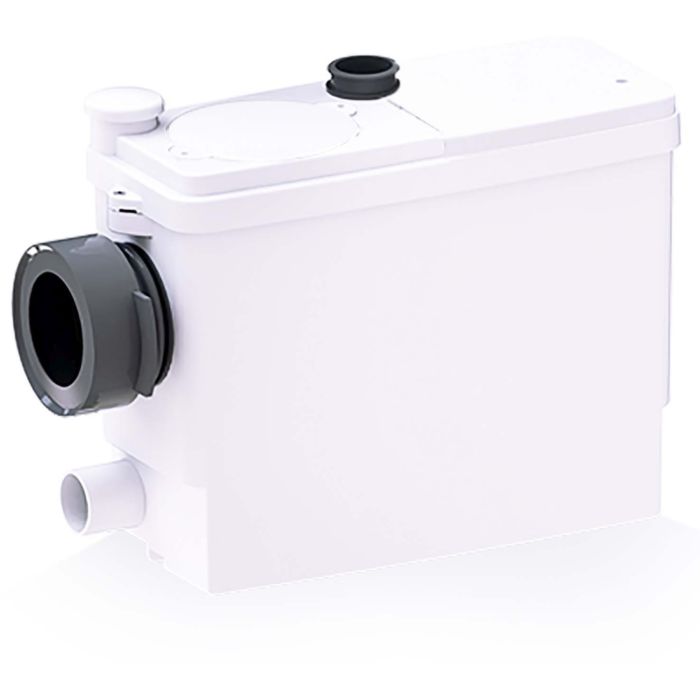

SFA SaniPack Pro UP WC lifting system 0017UP
  • Item number 0017UP
  • new series from 2017
  • Use: wall-mounted WC , washstand, shower, Bidet , Urinal
  • suitable for all common pre-wall systems
  • with integrated check valve
  • Vertical conveyance distance: 5m
  • Horizontal feed distance: 100m
  • soundproofed

Technical Data

Technical Data
color/ surface weiss
width 472 mm
depth 169 mm
height 363 mm
product class Sewage lifting unit
Supply voltage 1 x 230 V.
model SaniPack UP
IP protection) IP44
Max. Head 5 m
frequency 50 Hz
Nominal flow 5.4 m³ / h
Insulation class according to IEC F
Head at nominal volume flow 1 kPa
Material of the container plastic
With cutting unit Yes
Number of pumps 1
Nominal diameter, connection outlet side DN 25
Installation behind the toilet Yes
With check valve Yes
Suitable for faeces Yes
Suitable for outdoor use No
container volume 13.2 l
Alarm function No
