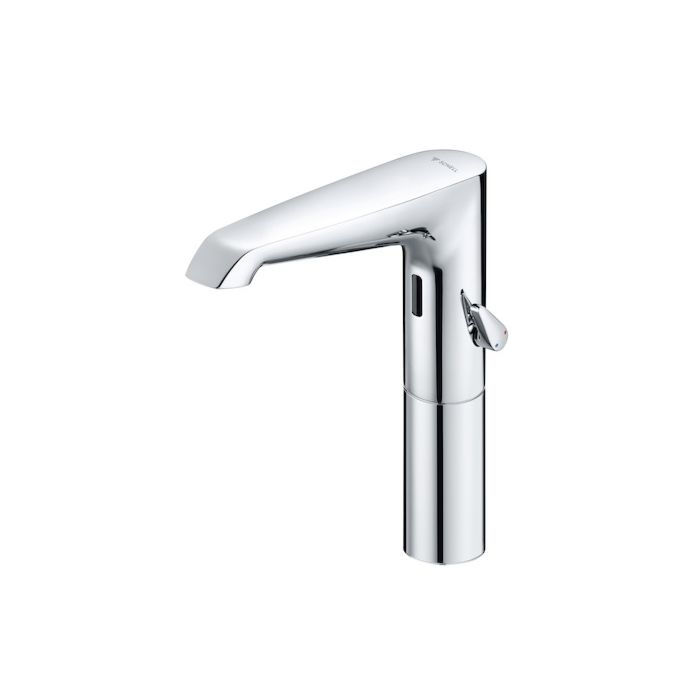

Schell XERIS E2 infrared washbasin faucet 002710699
- 9 VDC
- 100 - 240 VAC
- 50 - 60 Hz
- contactless
- sensor-controlled faucet with innovative ToF technology
- insensitive to reflective materials such as mirrors
- High-visibility vests etc.
- with integrated Bluetooth interface
- parameterizable via SCHELL app
- suitable for networking with SCHELL water management system SWS
- Setting options via SCHELL app
- Parameterization via preset operating modes (save power / save water / comfort)
- iIndividual settings in expert mode (sensor range, sensor measurement interval, person detection, max. runtime, follow-up time)
- Stagnation flushing (off / at intervals / flushing as needed taking into account usage / at fixed times (day(s), time)
- Continuous rinsing for thermal disinfection
- Triggering via app (3 - 10 min)
- Continuous flow
- Triggering via app (15 - 600 s)
- Cleaning stop
- Triggering via app or near reflex (Off / 60 – 360 s)
- Flow rate max. 5 l/min pressure independent
- Flow pressure 1.0 - 5.0 bar
- max. resting pressure 8 bar
- Max. operating temperature 70 °C (80 °C for thermal disinfection)
- Housing material: brass
- Chrome surface
- Connection 2x G 3/8 IG
- consisting of time-of-flight sensor single-hole fitting
- Temperature controller
- Time-of-Flight (ToF) sensor electronics with automatic adjustment of the sensor range
- Axial solenoid valve 6 V with prefilter
- recessed aerator (theft protection)
- Connection cable 360 mm
- with 3-pin connector
- Protection class IP 65
- flexible connection hose Clean-Fix SG 3/8 IG x 500 mm
- with integrated backflow preventer (RV
- EN 1717: EB) and pre-filter
- Fixing material for washbasin installation
