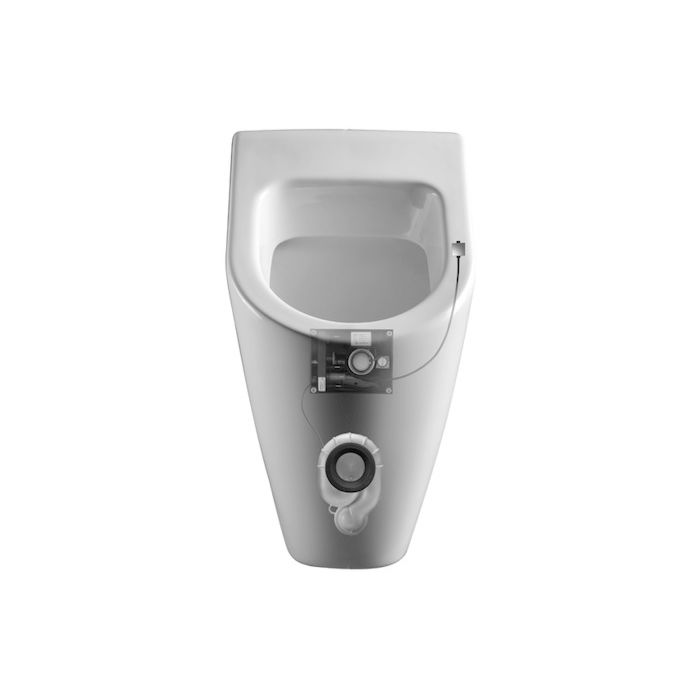

Schell compact lc urinal control 011970099 siphon Sensor , mains operation, 100-240 V
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 011970099
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Schell Compact lc urinal control 011970099
- universal usable
- Vandal-proof flush control with corrosion- Sensor
- for all Bathroom ceramics and stainless steel pools
- Plug + Play connectors
- IP 54
- with modulus of elasticity
- Solenoid valve with adapter
- Flush-mounted power supply 100 - 240 VAC
- 50-60 Hz
- Urinal siphon with LC Sensor
- with stagnation flush (every 24 hours after the last flush)
- automatic stadium operation (reduced flush volume with high user frequency> 2 users / 5 min)
- acoustic signal (when the battery is low)
- Odor trap flushing (when the water level is low)
- automatic flush stop (if the drain line is blocked)
- Setting options via reed contact ( Accessories )
- Wash programs (1l
- 2l
- Hybrid flush)
- Interval rinsing 5x (2 min exposure time per rinsing)
- Cleaning rinsing 10 s
- Cleaning stop 180 s
- Diagnostic program
