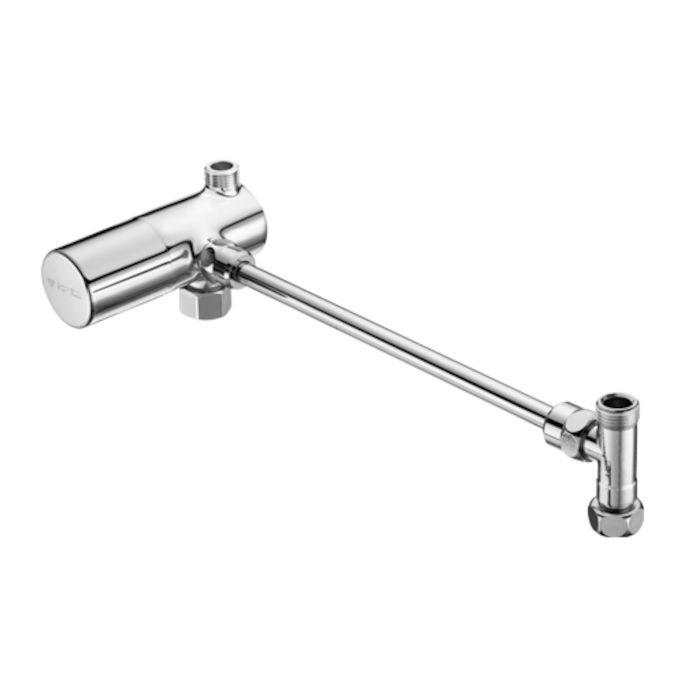

Schell angle valve thermostat set 094150699

  • thermostatic scalding protection fitting with piping fitting for assembly from angle valve with G 3/8 outlet
  • Setting the max. outlet temperature (hidden under cover cap) only possible with Tools
  • Angle valve thermostat: expansion material thermostat according to EN 1111
  • Protection against scalding if the cold water supply fails
  • 2 Check Valves RV (EN 1717: EB)
  • 2 pre-filter
  • Piping set for angle valve thermostat: T-Stück with movable union nut G 3/8 IG
  • Connection tube with 801 -tensile brass cone compression fittings with length compensation
  • Angle valve thermostat: Plastic cover cap
  • Casing brass compliant with Drinking Water Ordinance
  • Thermal disinfection possible after unlocking the temperature lock
  • Flow at 3 bar 13 l/min
  • max. operating temperature 70° (temporarily e.g. for thermal disinfection)
  • max. outlet temperature 33-50 °C adjustable
  • Connection G 3/8 IG
  • G 3/8 AG
  • Outlet G 3/8 AG
  • Piping set for angle valve thermostat: connection G 3/ IG
  • surface chrome

Scope of delivery:

  • Angle valve thermostat
  • Piping set for angle valve thermostat
