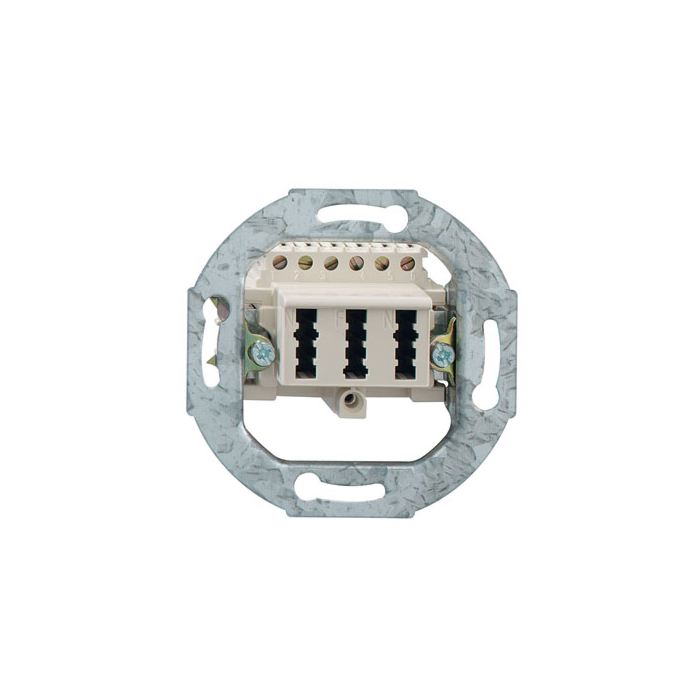

Rutenbeck connection box TAE 3x6 NFN Up 0 rw 10210517
- TAE connection socket
- NFN
- Flush-mounted
- for 1 telephone and 2 additional devices
- 3 x 6-pin
- 6 screw contacts
- with spreading claws
- for covers from electrical installation material manufacturers
- Base pure white (similar to RAL 9010)
- Metal support ring with expanding claws Contacts made of nickel silver or brass
- tinned gold-plated contact surfaces Rated voltage: 125 V DC/AC Circuit load: max. 10 VA Insulation resistance: > 200 MO Contact resistance: < 20/30 mO Dielectric strength: 1000 V
- 50 Hz
- 1 min. lifetime: > 100,000 mating cycles metric screws for central plates suitable for TAE design covers of the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.)
