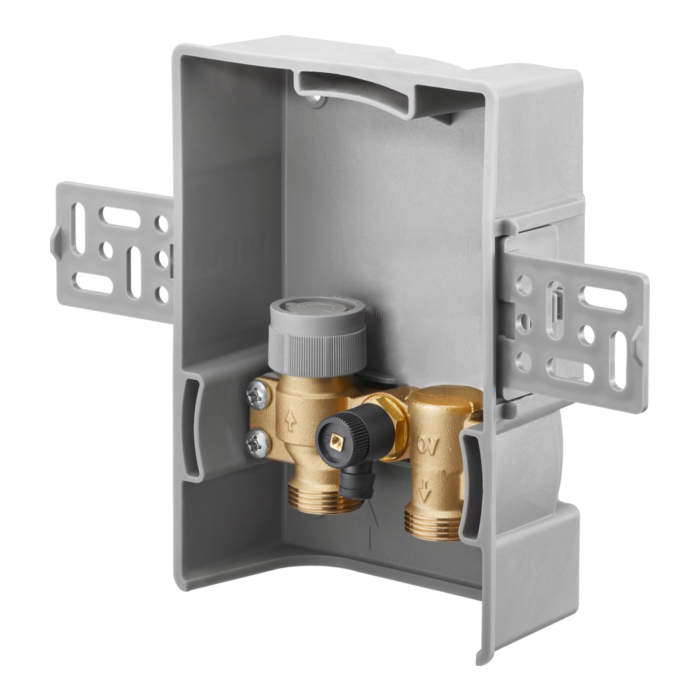

Oventrop Unibox room temperature control 1022729
  • with automatic
  • hydraulic balancing for use in systems with flow temperatures suitable for surface heating
  • consisting of: wall box with pre-adjustable thermostatic valve
  • Vent and flush valve
  • Valve isolation
  • for operation with non-aggressive
  • non-hazardous liquids
  • Max. Operating pressure ps: 10 bar
  • Operating temperature ts: 2-100 ° C
  • Set point range: 7-28 ° C (room temperature)
  • Valve with G 3/4 pipe connection according to DIN EN 16313 (Eurocone)
