Oventrop Unibox room temperature control 1022725 without cover, with bypass
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 1022725
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

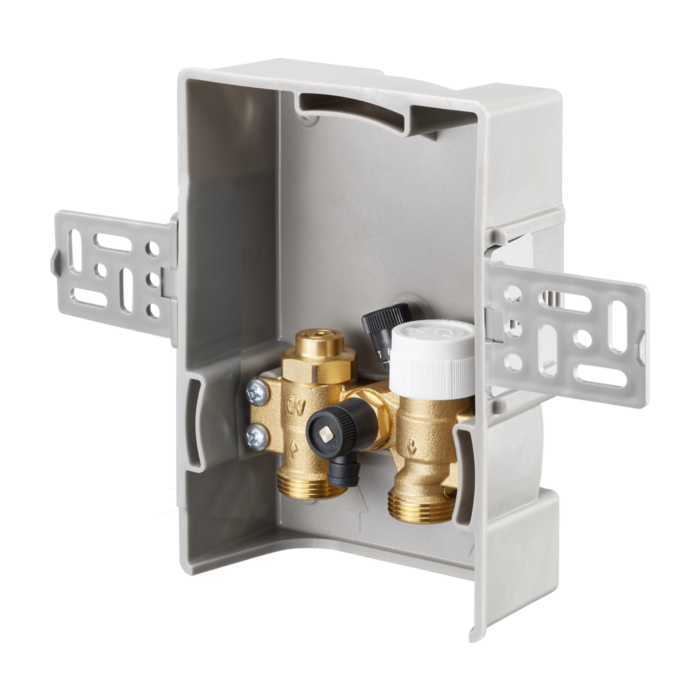

Oventrop Unibox room temperature control 1022725
- for use in systems with flow temperatures suitable for surface heating
- consisting of: wall box with thermostatic valve with integrated bypass spindle and regulating insert
- Vent and flush valve
- Cover with integrated thermostat valve insulation
- for operation with non-aggressive
- non-hazardous liquids
- Max. Operating pressure ps: 10 bar
- Operating temperature ts: 2-100 ° C
- Set point range: 7-28 ° C (room temperature)
- Valve with G 3/4 pipe connection according to DIN EN 16313 (Eurocone)
