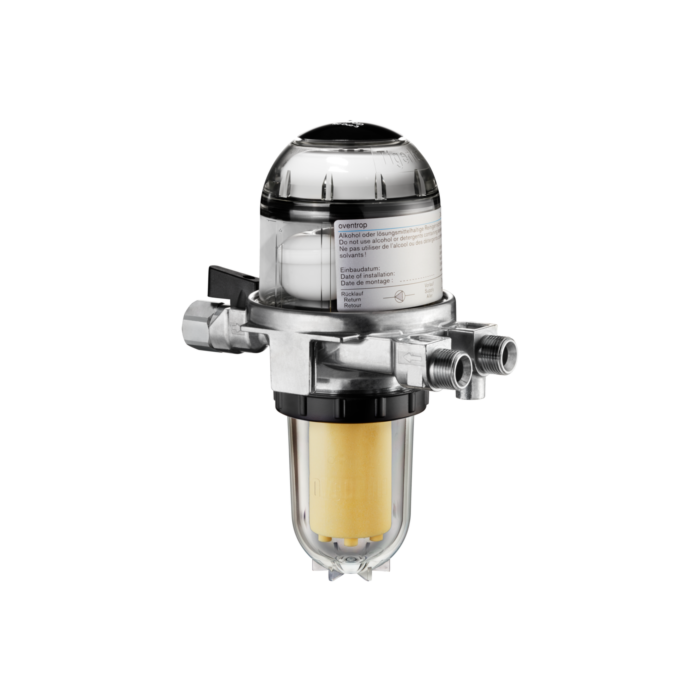

Oventrop Toc-Duo 3 heating oil filter / fuel oil vent 2142732
Item number 2142732
OVENTROP combination of heating oil filter / heating oil ventilator "Toc-Duo-3"
for use only in suction mode for single-line systems with return feed. Breather housing made of metal for wall mounting and shut-off valve. Filters - and float Filters made of transparent plastic to check the function.
The fitting is equipped with a barrier, wall bracket and filter cup.
Installation below and above the tank oil level permitted.
Max. Nozzle output: 110 l / h heating oil EL max. Return flow: 120 l / h heating oil EL Venting capacity: min 6 l / h air
Connections: G? IG for clamping ring connection 6, 8, 10 or 12 mm on the burner side G? AG with inner cone
Item number 2142732
OVENTROP combination of heating oil filter / heating oil ventilator "Toc-Duo-3"
for use only in suction mode for single-line systems with return feed. Breather housing made of metal for wall mounting and shut-off valve. Filters - and float Filters made of transparent plastic to check the function.
The fitting is equipped with a barrier, wall bracket and filter cup.
Installation below and above the tank oil level permitted.
Max. Nozzle output: 110 l / h heating oil EL max. Return flow: 120 l / h heating oil EL Venting capacity: min 6 l / h air
Connections: G? IG for clamping ring connection 6, 8, 10 or 12 mm on the burner side G? AG with inner cone
