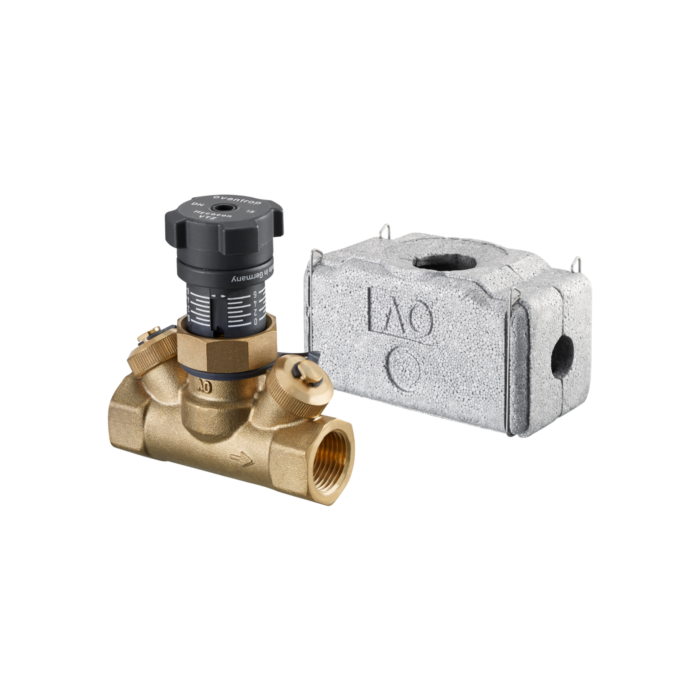

Oventrop balancing valve Hycocon VTZ 1061712

"Hycocon VTZ" DN40, 2000 2000 / 2 "female thread, 2000 measuring and emptying device, Ms OVENTROP-" Hycocon VTZ "brass line regulating valve PN 16 line regulating valve with socket thread according to DIN 2999, from -20 C to 120 C, not For steam, in degree seat design with secure, continuously controllable, infinitely fine presetting. Readability of the presetting depending on the handwheel position. Valve housing and head piece made of brass. Other wetted parts made of dezincification-resistant brass (Ms-EZB) or stainless steel O-ring, all functional elements on the handwheel side, two integrated measuring and emptying valves on the valve, assembly in the flow and return. 2000 connection M 30 x 2000 .5, suitable for the assembly of thermostats (eg "Uni XH") , of actuators (eg electromotive actuator "Uni EIB") and a differential pressure regulator attachment. Replaceable during operation of the system. Insulation for T Temperatures up to 80 C in the scope of delivery (as packaging) optionally contain separate insulation up to 120 C as accessories. Insulations can be used for the cooling area thanks to additional polystyrene shells. Max. Operating temperature: 120 C Max. Operating pressure: 16 bar Manufacturers : FW OVENTROP GmbH & Co. KG, Olsberg
