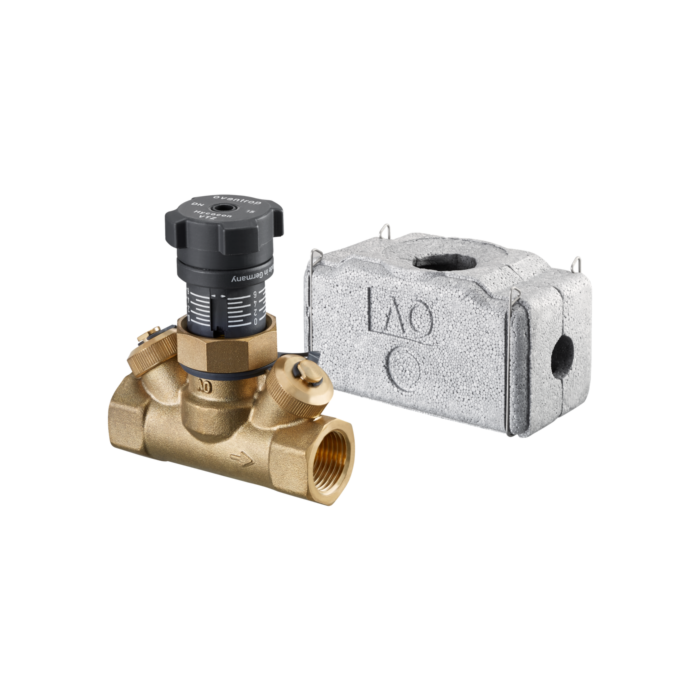

Oventrop balancing valve Hycocon VTZ 1061710
"Hycocon VTZ" DN32, 2000 2000 / 4 "IG, with measuring and emptying device, Ms OVENTROP-" Hycocon VTZ "brass line regulating valve PN 16 line regulating valve with socket thread according to DIN 2999, from -20 C to 120 C, not For steam, in degree seat design with secured, continuously controllable, infinitely fine pre-setting. Readability of the pre-setting depending on the handwheel position. Valve housing and head piece made of brass O-ring, all functional elements on the handwheel side, two integrated measuring and emptying valves on the valve, assembly in the flow and return. 2000 connection M 30 x 2000 .5, suitable for the assembly of thermostats (eg "Uni XH") , of actuators (eg electromotive actuator "Uni EIB") and a differential pressure regulator attachment. Replaceable during operation of the system. Insulation for T Temperatures up to 80 C in the scope of delivery (as packaging) optionally contain separate insulation up to 120 C as accessories. Insulations can be used for the cooling area thanks to additional polystyrene shells. Max. Operating temperature: 120 C Max. Operating pressure: 16 bar Manufacturers : FW OVENTROP GmbH & Co. KG, Olsberg

Technical Data

Technical Data
product class Isolating valve
Article compression stage PN 16
Flange pressure rating PN 16
model VTZ
Nominal diameter DN 32
series Hycocon
Housing material Brass
Max. Medium temperature (continuous operation) 120 ° C
Min. Medium temperature (continuous operation) -10 ° C
surface protection untreated
KIWA seal of approval No
With drain valve Yes
Material quality Brass, dezincification resistant (DZR)
With thermometer No
Handwheel diameter 50 mm
operating height 91 mm
Angle spindle 90 °
Suitable for heating water Yes
manual operation Yes
With measuring connection Yes
Suitable for drinking water No
control gear static
