Details

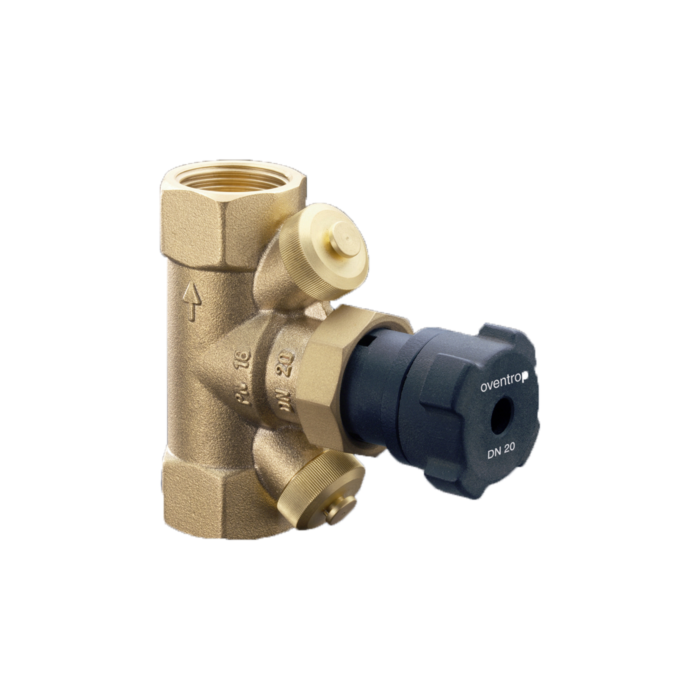

OVENTROP line shut-off valve Hycocon ATZ DN40, 2000 2000 / 2 "IT, 2000 measuring and emptying valve, Ms OVENTROP line shut-off valve Hycocon ATZ DN40, 2000 2000 / 2" 2000 , m. Measuring and emptying device, Ms OVENTROP "Hycocon ATZ" brass line shut-off valve without presetting Line shut-off valve with socket thread according to DIN 2999, from -20 C to 120 C, in a degree seat design. Valve housing and head piece made of brass other wetted parts made of dezincification-resistant brass (Ms-EZB), cone with soft seal made of PTFE, maintenance-free spindle seal through double O-ring. Measuring and drain valve on the downstream side of the valve (connection for impulse line of a differential pressure regulator) Installation in the flow and return. Insulation for temperatures up to 80 C in the scope of delivery (as packaging) optionally contains separate insulation up to 120 C as an accessory. Insulations can be used for the cooling area thanks to additional polystyrene shells. Max. Operating temperature: 120 C Max. Operating pressure: 16 bar Manufacturers : FW OVENTROP GmbH & Co. KG, Olsberg

Technical Data

Technical Data
product class Isolating valve
Article compression stage PN 16
Flange pressure rating PN 16
model ATZ
Nominal diameter DN 40
series Hycocon
Housing material Brass
Max. Medium temperature (continuous operation) 120 ° C
Min. Medium temperature (continuous operation) -10 ° C
surface protection untreated
Material quality Brass, dezincification resistant (DZR)
