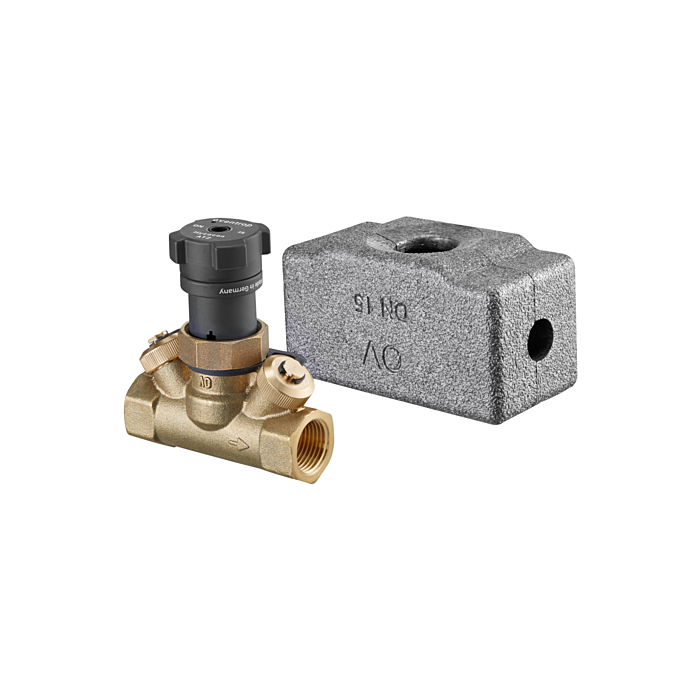

Oventrop shut-off valve Hycocon ATZ 1067308

Hycocon ATZ DN25, 2000 "IG, with measuring and emptying device, Ms OVENTROP" Hycocon ATZ "brass line shut-off valve without presetting Brass other parts in contact with the medium made of dezincification-resistant brass (Ms-EZB), cone with soft seal made of PTFE, maintenance-free spindle seal through double O-ring Insulation for temperatures up to 80 C in the scope of delivery (as packaging) optionally contain separate insulation up to 120 C as an accessory. Insulations can be used for the cooling area with additional polystyrene shells. Max. operating temperature: 120 C Max bar Manufacturers : FW OVENTROP GmbH & Co. KG, Olsberg

Technical Data

Technical Data
product class Isolating valve
Article compression stage PN 16
Flange pressure rating PN 16
model ATZ
Nominal diameter DN 25
series Hycocon
Housing material Brass
Max. Medium temperature (continuous operation) 120 ° C
Min. Medium temperature (continuous operation) -10 ° C
surface protection untreated
Material quality Brass, dezincification resistant (DZR)
