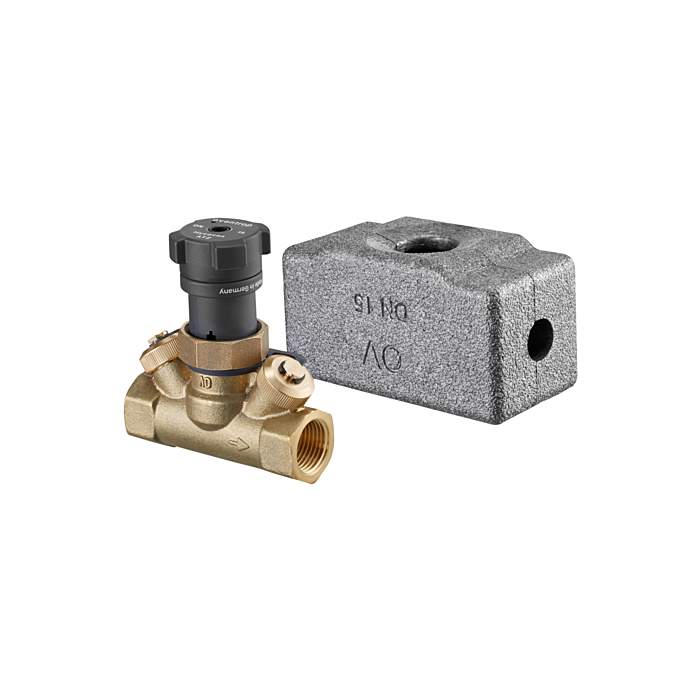

Oventrop shut-off valve Hycocon ATZ 1067304

Hycocon ATZ DN15, 2000 / 2 " 2000 , with measuring and emptying device, Ms OVENTROP" Hycocon ATZ "brass shut-off valve without presetting Brass headpiece other parts in contact with the medium made of dezincification-resistant brass (Ms-EZB), cone with soft seal made of PTFE, maintenance-free spindle seal by double O-ring. Measuring and drain valve on the outflow side of the valve (connection for impulse line of a differential pressure regulator ) Installation in the supply and return lines. Insulation for temperatures up to 80 C in the scope of delivery (as packaging) optionally contain separate insulation up to 120 C. Insulations can be used for the cooling area thanks to additional polystyrene shells. Max. Operating temperature: 120 C Max. Operating pressure : 16 bar Manufacturers : FW OVENTROP GmbH & Co. KG, Olsberg

Technical Data

Technical Data
product class Isolating valve
Article compression stage PN 16
Flange pressure rating PN 16
model ATZ
Nominal diameter DN 15
series Hycocon
Housing material Brass
Max. Medium temperature (continuous operation) 120 ° C
Min. Medium temperature (continuous operation) -10 ° C
surface protection untreated
Material quality Brass, dezincification resistant (DZR)
