Details

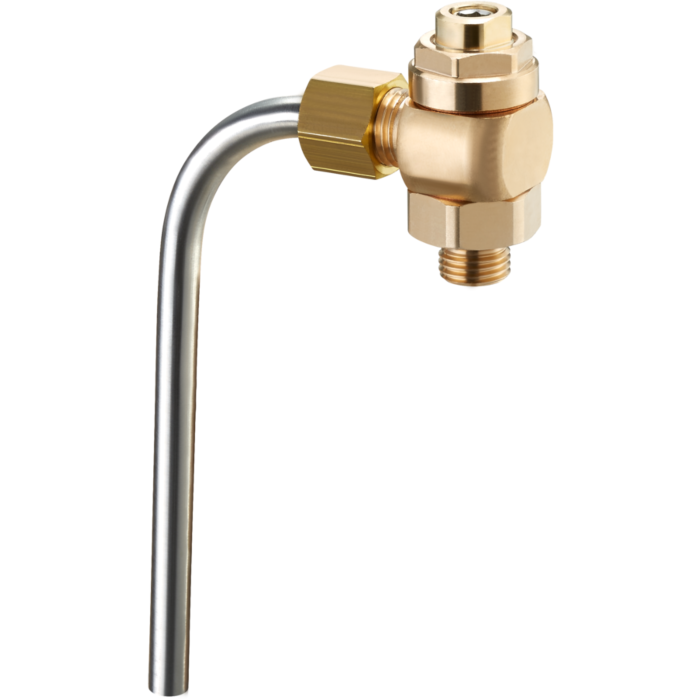

Sampling valve 4209102 Aquastrom P flammable, gunmetal / Stainless Steel , DN8, 2000 / 4 ": Flammable sampling valve for hygienic-microbiological analysis according to DVGW W 551 and drinking water regulation. Drinking water systems PN 16 for circulation lines according to DVGW worksheets W551 and W553 made of bronze in accordance with DIN EN 1982 and DIN 50930-6 Metal sealing in accordance with VDI 6023, outlet sheet of.. Stainless Steel pre-assembled loosely, characterized arbitrary installation length possible operating with an allen key material.:. gunmetal / Stainless Steel size: DN 8, thread G ¼ AG, Art . No .: 4209102, EAN code: 4026755309959.

Technical Data

Technical Data
product class Sampling valve
service key
model P
series Aquastrom
Housing material bronze
UBA positive list Yes
Max. Medium temperature (continuous operation) 90 ° C
With operating key Yes
Suitable for heating water Yes
Suitable for drinking water Yes
